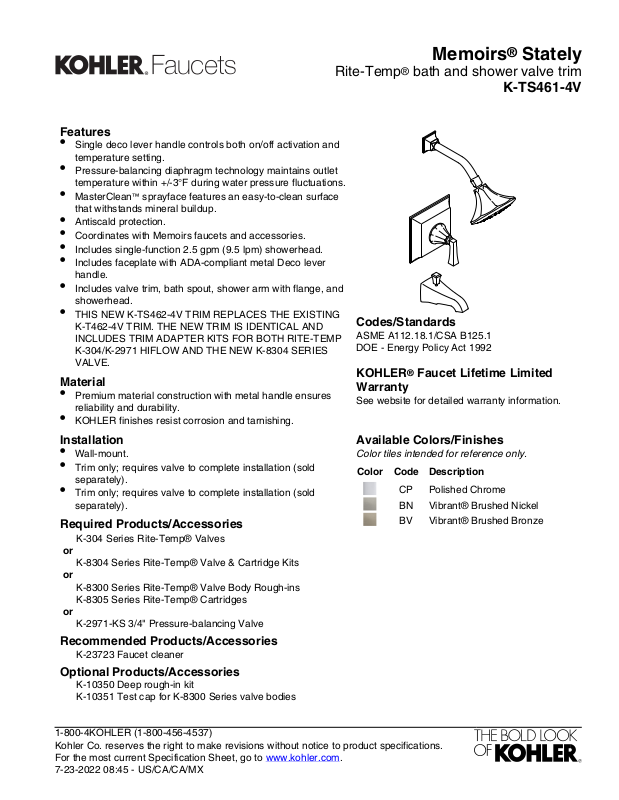

Page 1
Features
•
Single deco lever handle controls both on/off activation and
temperature setting.
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Antiscald protection.
•
Coordinates with Memoirs faucets and accessories.
•
Includes single-function 2.5 gpm (9.5 lpm) showerhead.
•
Includes faceplate with ADA-compliant metal Deco lever
handle.
•
Includes valve trim, bath spout, shower arm with flange, and
showerhead.
•
THIS NEW K-TS462-4V TRIM REPLACES THE EXISTING
K-T462-4V TRIM. THE NEW TRIM IS IDENTICAL AND
INCLUDES TRIM ADAPTER KITS FOR BOTH RITE-TEMP
K-304/K-2971 HIFLOW AND THE NEW K-8304 SERIES
VALVE.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
•
Trim only; requires valve to complete installation (sold
separately).
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-304 Series Rite-Temp® Valves
or
K-8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
K-8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
Memoirs® Stately
Rite-Temp® bath and shower valve trim
K-TS461-4V
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 08:45 - US/CA/CA/MX
Page 2

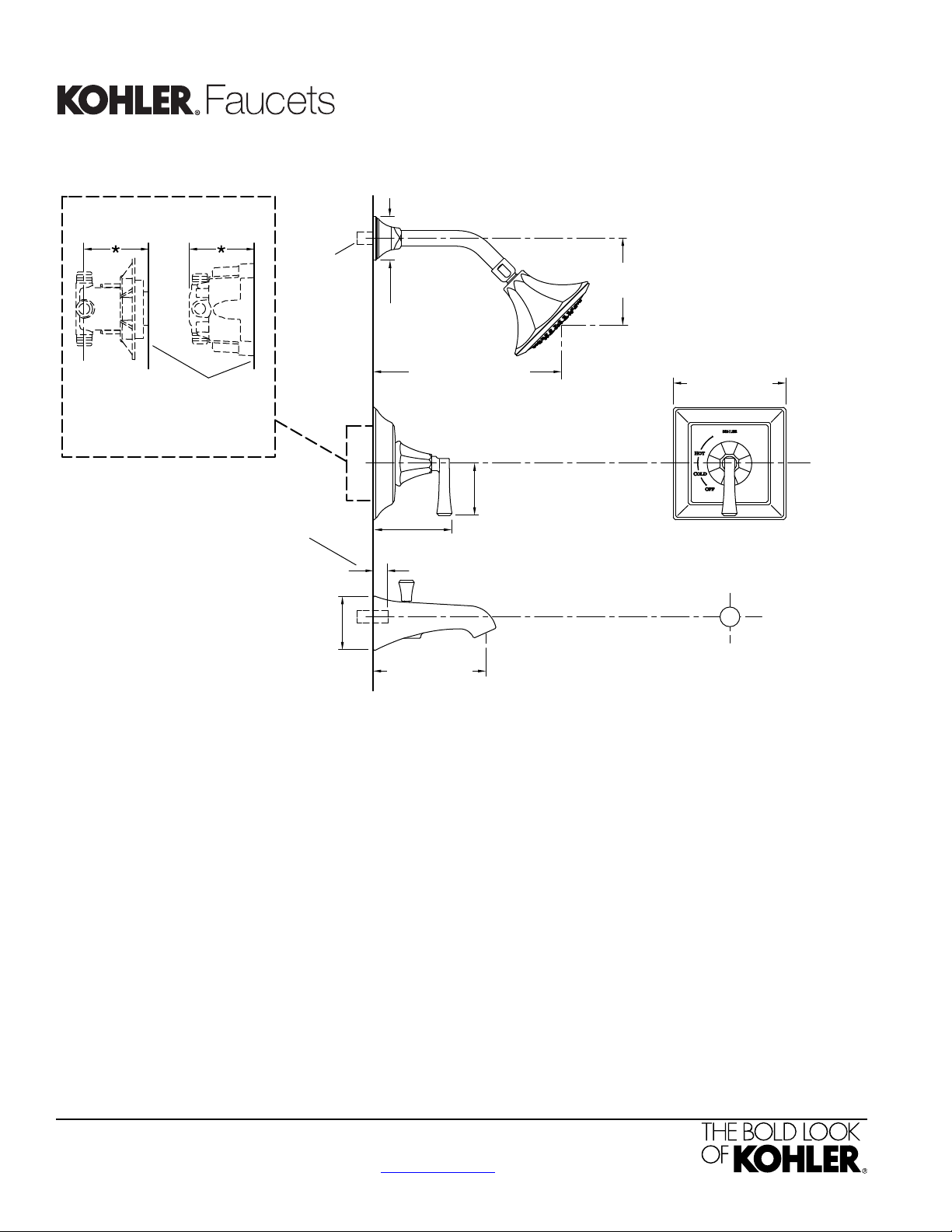

Memoirs® Stately
6" (152 mm)
1/2"
NPT
Threaded Spout:
Extend 1/2" NPT pipe 7/16"
(11 mm) from finished wall.
2-7/8"
(73 mm)
2-1/4"
(57 mm)
6" (152 mm)
5-7/16"
(138 mm)
7-9/16" (192 mm)
Typical
2-3/4"
(70 mm)
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
Finished Wall
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
4" (102 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 80 psi (5.5 bar)
Notes
Install the product according to the installation
guide.
NOTICE: Risk of product damage. Long screws
for installing trim can damage the K-2971-KS
valve. Consult the trim installation guide to
verify if the thin wall installation kit (88526) is
needed.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and the wall-mount spout. Elbow must
be a 90 degree drop ell that is secured to rigid
framing.
