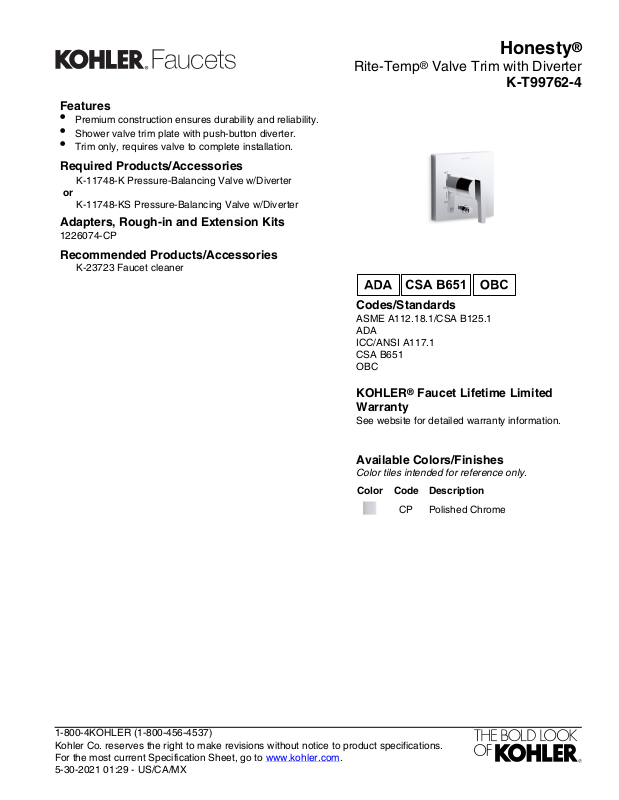

Page 1
Honesty
Features
•
Premium construction ensures durability and reliability.
•
Shower valve trim plate with push-button diverter.
•
Trim only, requires valve to complete installation.
Required Products/Accessories
K-11748-K Pressure-Balancing Valve w/Diverter
or
K-11748-KS Pressure-Balancing Valve w/Diverter
Adapters, Rough-in and Extension Kits
1226074-CP
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
®
Rite-Temp® Valve Trim with Diverter
K-T99762-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:29 - US/CA/MX
Page 2
Honesty
6-1/2" (165 mm)
3-3/16"
(81 mm)
4-1/2" (114 mm)
C
L of Valve Inlet
2-3/4" (70 mm) Thin Wall
3-1/2" (89 mm) Thick Wall
If over 3-1/2" (89 mm) and
up to 4-1/4" (108 mm),
use Deep Roughing-in kit.
Technical Information
All product dimensions are nominal.
Valve body: Machined-brass
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Rite-Temp® Valve Trim with Diverter
K-T99762-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:29 - US/CA/MX
