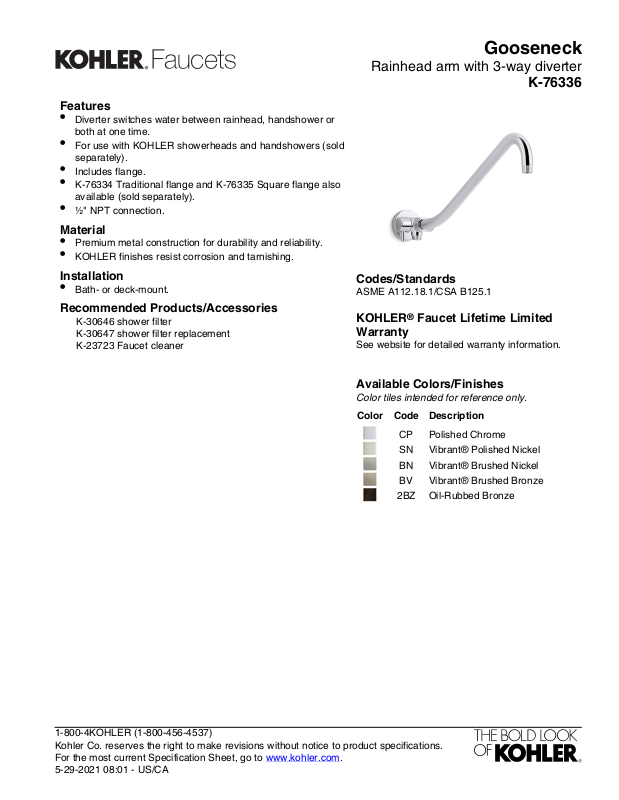

Page 1
Gooseneck
Features
•
Diverter switches water between rainhead, handshower or
both at one time.
•
For use with KOHLER showerheads and handshowers (sold
separately).
•
Includes flange.
•
K-76334 Traditional flange and K-76335 Square flange also
available (sold separately).
•
½" NPT connection.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Bath- or deck-mount.
Recommended Products/Accessories
K-30646 shower filter
K-30647 shower filter replacement
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
2BZ Oil-Rubbed Bronze
Rainhead arm with 3-way diverter
K-76336
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 08:01 - US/CA
Page 2
Gooseneck
Ø 2-1/2"
(64 mm)
18-3/16" (426 mm)
3-1/16"
(78 mm)
3-1/4"
(83 mm)
6-3/16"
(157 mm)
2"
(51 mm)
G1/2-B
1/2"-14
NPT
1/2"-14 NPT
Technical Information
All product dimensions are nominal.
Drain included: No
Notes
Install this product according to the installation
guide.
Rainhead arm with 3-way diverter
K-76336
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 08:01 - US/CA
