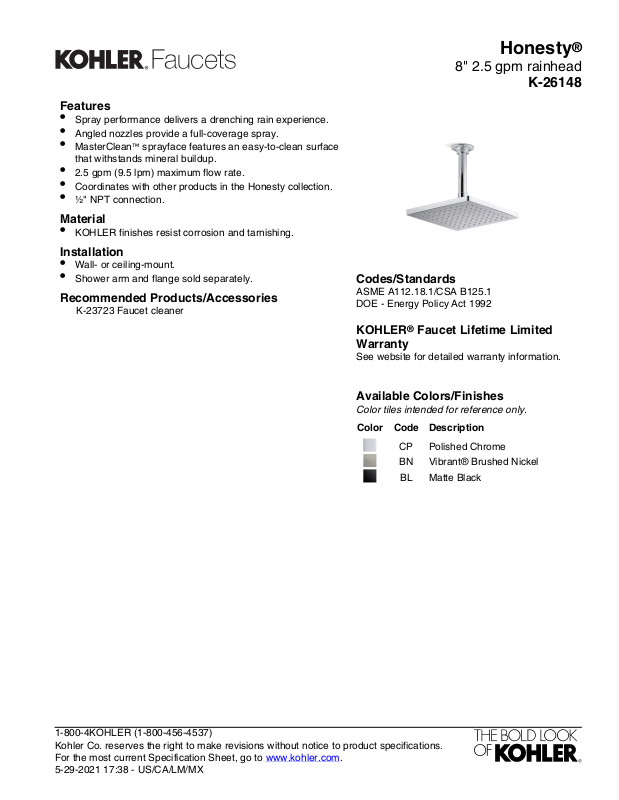

Page 1
Honesty
Features
•
Spray performance delivers a drenching rain experience.
•
Angled nozzles provide a full-coverage spray.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
2.5 gpm (9.5 lpm) maximum flow rate.
•
Coordinates with other products in the Honesty collection.
•
½" NPT connection.
Material
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall- or ceiling-mount.
•
Shower arm and flange sold separately.
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
BL Matte Black
®
8" 2.5 gpm rainhead
K-26148
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 17:38 - US/CA/LM/MX
Page 2
Honesty
8" (203 mm)
2-7/16"
(62 mm)
1/2"-14 NPT
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 2.5 gal/min (9.5 l/min)
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 80 psi (5.5 bar)
Notes
For use with automatic compensating valves
rated at 2.10 gal/min (7.9 l/min) or less.
Install this product according to the installation
instructions.
®
8" 2.5 gpm rainhead
K-26148
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 17:38 - US/CA/LM/MX
