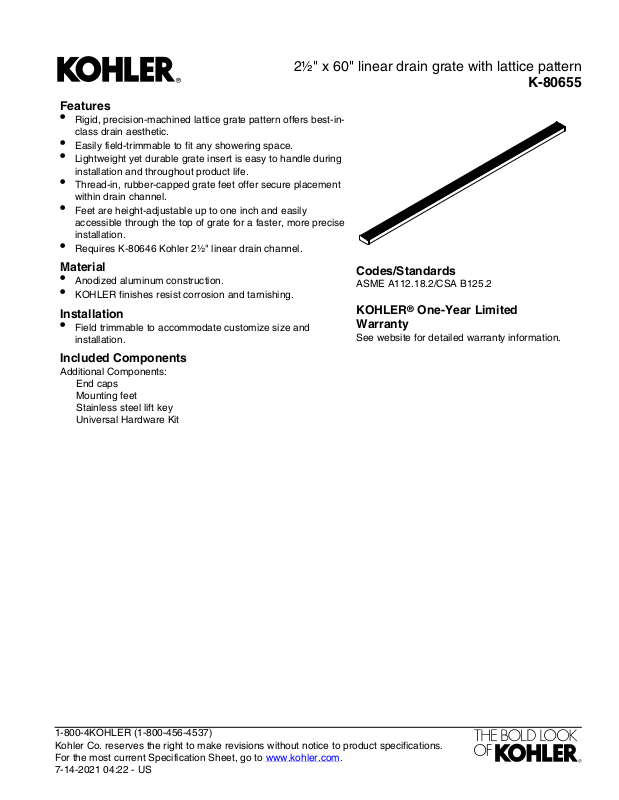

2½" x 60" linear drain grate with lattice pattern
Features
•
Rigid, precision-machined lattice grate pattern offers best-inclass drain aesthetic.
•
Easily field-trimmable to fit any showering space.
•
Lightweight yet durable grate insert is easy to handle during
installation and throughout product life.
•
Thread-in, rubber-capped grate feet offer secure placement
within drain channel.
•
Feet are height-adjustable up to one inch and easily
accessible through the top of grate for a faster, more precise
installation.
•
Requires K-80646 Kohler 2½" linear drain channel.
Material
•
Anodized aluminum construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Field trimmable to accommodate customize size and
installation.
Included Components
Additional Components:
End caps
Mounting feet
Stainless steel lift key
Universal Hardware Kit
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
K-80655
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-14-2021 04:22 - US
2½" x 60" linear drain grate with lattice pattern
2-9/16"
(65 mm)
1-1/8"
(29 mm)
2-3/16"
(56 mm)
Max
60" (1524 mm)
Technical Information
All product dimensions are nominal.
Material: Anodized Aluminum
K-80655
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-14-2021 04:22 - US
