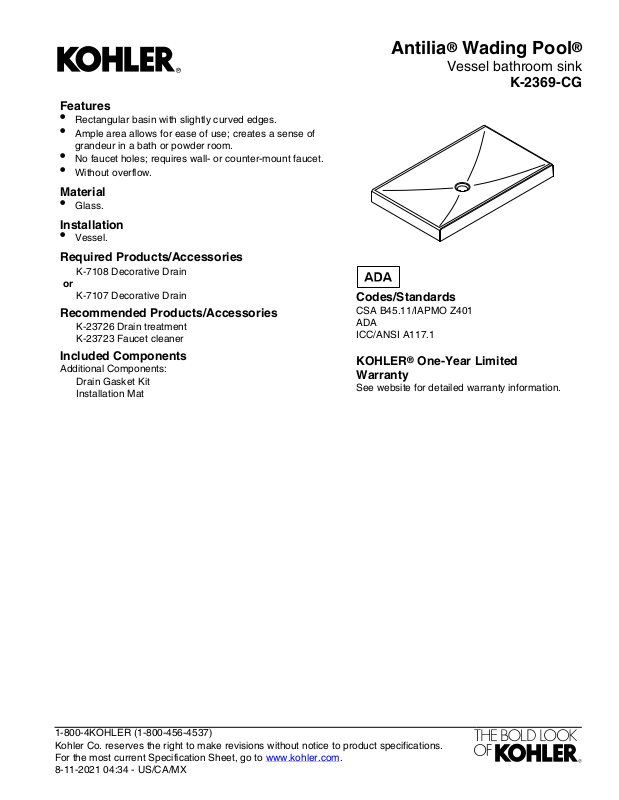

Page 1
Antilia® Wading Pool
Features
•
Rectangular basin with slightly curved edges.
•
Ample area allows for ease of use; creates a sense of
grandeur in a bath or powder room.
•
No faucet holes; requires wall- or counter-mount faucet.
•
Without overflow.
Material
•
Glass.
Installation
•
Vessel.
Required Products/Accessories
K-7108 Decorative Drain
or
K-7107 Decorative Drain
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Included Components
Additional Components:
Drain Gasket Kit
Installation Mat
Codes/Standards
CSA B45.11/IAPMO Z401
ADA
ICC/ANSI A117.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Vessel bathroom sink
K-2369-CG
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-11-2021 04:34 - US/CA/MX
Page 2
Antilia® Wading Pool
Ø 1-5/8" (41 mm)
2-3/4" (70 mm)
2-3/16" (56 mm)
17-1/16"
(433 mm)
8-1/2"
(216 mm)
14" (356 mm)
28-1/16" (713 mm)
Optimal water
delivery location
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Vessel
Bowl area (Only): Length: 27-7/8" (708 mm)
Width: 16-3/16" (411 mm)
Bowl depth: 2-3/16" (56 mm)
Water depth: 2-3/16" (56 mm)
Drain hole: 1-5/8" (41 mm)
Notes
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
Vessel bathroom sink
K-2369-CG
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-11-2021 04:34 - US/CA/MX
