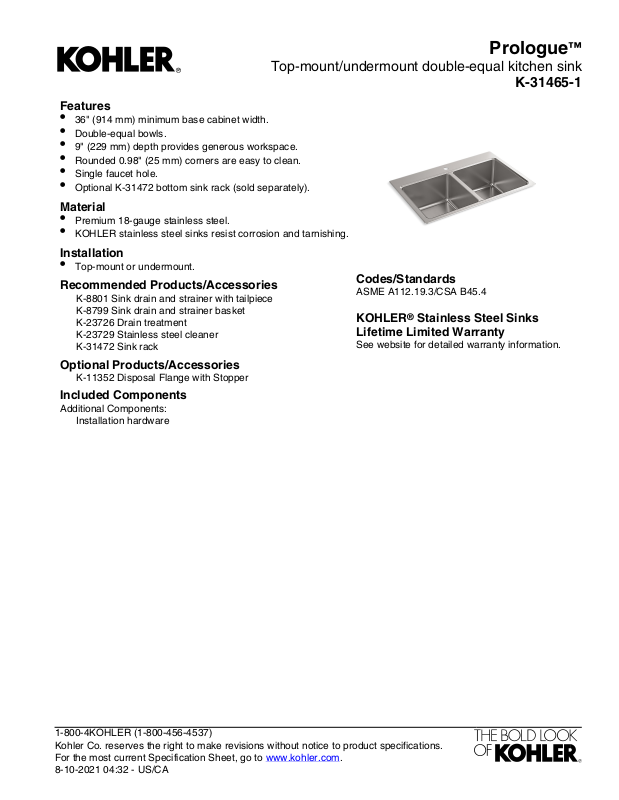

Page 1
Prologue
Features
•
36" (914 mm) minimum base cabinet width.
•
Double-equal bowls.
•
9" (229 mm) depth provides generous workspace.
•
Rounded 0.98" (25 mm) corners are easy to clean.
•
Single faucet hole.
•
Optional K-31472 bottom sink rack (sold separately).
Material
•
Premium 18-gauge stainless steel.
•
KOHLER stainless steel sinks resist corrosion and tarnishing.
Installation
•
Top-mount or undermount.
Recommended Products/Accessories
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23729 Stainless steel cleaner
K-31472 Sink rack
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
Included Components
Additional Components:
Installation hardware
Codes/Standards
ASME A112.19.3/CSA B45.4
KOHLER® Stainless Steel Sinks
Lifetime Limited Warranty
See website for detailed warranty information.
™
Top-mount/undermount double-equal kitchen sink
K-31465-1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-10-2021 04:32 - US/CA
Page 2
Prologue
22" (559 mm)
2-5/16"
(59 mm)
14-11/16"
(373 mm)
1-1/2" OD
9-5/16"
(237 mm)
3-7/8"
(98 mm)
12-7/16"
(316 mm)
16-1/2"
(419 mm)
15-5/8"
(397 mm)
8-11/16"
(221 mm)
8-11/16"
(221 mm)
9-9/16"
(243 mm)
33" (838 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Double equal
Installation: Top-mount, Undermount
Min. base cabinet
width:
36" (914 mm)
Bowl area (Left): Length: 14-3/8" (365 mm)
Width: 16-1/8" (410 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
Bowl area (Right): Length: 14-3/8" (365 mm)
Width: 16-1/8" (410 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
With overflow: No
Number of deck
holes:
1
Faucet hole(s): 1-7/16" (37 mm)
Drain hole: 3-5/8" (92 mm)
Template: Top-mount/Undermount, 1442591-7,
required, included
Notes
Install this product according to the installation
instructions.
™
Top-mount/undermount double-equal kitchen sink
K-31465-1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-10-2021 04:32 - US/CA
