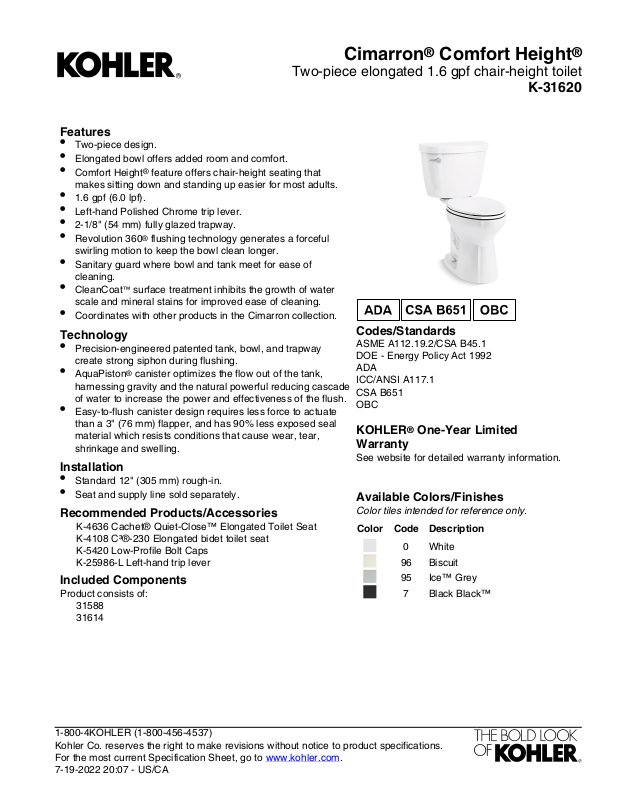

Page 1
Features
•
Two-piece design.
•
Elongated bowl offers added room and comfort.
•
Comfort Height® feature offers chair-height seating that
makes sitting down and standing up easier for most adults.
•
1.6 gpf (6.0 lpf).
•
Left-hand Polished Chrome trip lever.
•
2-1/8" (54 mm) fully glazed trapway.
•
Revolution 360® flushing technology generates a forceful
swirling motion to keep the bowl clean longer.
•
Sanitary guard where bowl and tank meet for ease of
cleaning.
•
CleanCoat™ surface treatment inhibits the growth of water
scale and mineral stains for improved ease of cleaning.
•
Coordinates with other products in the Cimarron collection.
Technology
•
Precision-engineered patented tank, bowl, and trapway
create strong siphon during flushing.
•
AquaPiston® canister optimizes the flow out of the tank,
harnessing gravity and the natural powerful reducing cascade
of water to increase the power and effectiveness of the flush.
•
Easy-to-flush canister design requires less force to actuate
than a 3" (76 mm) flapper, and has 90% less exposed seal
material which resists conditions that cause wear, tear,
shrinkage and swelling.
Installation
•
Standard 12" (305 mm) rough-in.
•
Seat and supply line sold separately.
Recommended Products/Accessories
K-4636 Cachet® Quiet-Close™ Elongated Toilet Seat
K-4108 C³®-230 Elongated bidet toilet seat
K-5420 Low-Profile Bolt Caps
K-25986-L Left-hand trip lever
Included Components
Product consists of:
31588
31614
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
95 Ice™ Grey
7 Black Black™
Cimarron® Comfort Height
®
Two-piece elongated 1.6 gpf chair-height toilet
K-31620
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-19-2022 20:07 - US/CA
Page 2
Cimarron® Comfort Height
Do not use a
double sanitary tee.
Use a 45° double
wye fitting.
For Back-to-Back Toilet Installations
L of Outlet
C
12" (305 mm)
3/8" NPT
Supply
Front of Bowl
1"
(25 mm)
28-13/16" (732 mm)
3-5/16"
(84 mm)
8-1/4"
(210 mm)
7/8"
(22 mm)
16-1/2"
(419 mm)
31-1/4"
(794 mm)
18-5/8"
(473 mm)
15-5/8"
(397 mm)
8-1/4"
(210 mm)
11-3/8"
(289 mm)
5"
(127 mm)
5" (127 mm)
Technical Information
All product dimensions are nominal.
Toilet type: Floor-mount
Waste Outlet: Floor
Bowl shape: Elongated
Flush type: Revolution 360
®
Trap passageway: 2-1/8" (54 mm)
Water Consumption
Full: 1.6 gpf (6 lpf)
Water surface size: 10-3/8" x 8-1/8" (264 mm x 206 mm)
Rim to water
surface:
6-5/8" (168 mm)
Rough-in: 12" (305 mm)
Seat-mounting
holes:
5-1/2" (140 mm)
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
Plumbing codes may require elongated toilets
and elongated, open-front seats in public
bathrooms.
Accessibility standards may require controls to
be located on the open side of the toilet.
®
Two-piece elongated 1.6 gpf chair-height toilet
K-31620
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-19-2022 20:07 - US/CA
