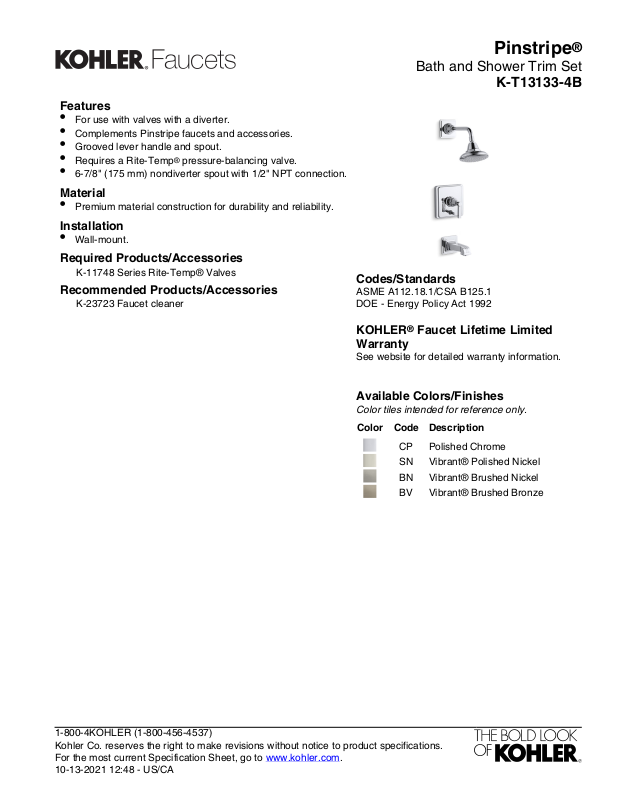

Pinstripe
Features
•
For use with valves with a diverter.
•
Complements Pinstripe faucets and accessories.
•
Grooved lever handle and spout.
•
Requires a Rite-Temp® pressure-balancing valve.
•
6-7/8" (175 mm) nondiverter spout with 1/2" NPT connection.
Material
•
Premium material construction for durability and reliability.
Installation
•
Wall-mount.
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
®
Bath and Shower Trim Set
K-T13133-4B
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 12:48 - US/CA
Pinstripe
1/2" IPS
11-1/4"
(286 mm)
Max
1/2"-14
NPT
6-7/8" (175 mm)
48" (1219 mm)
To Floor
(Shower Only)
6-15/16"
(176 mm)
6-11/16" (170 mm)
6"
(152 mm)
3-7/8"
(98 mm)
72" (1829 mm) To
78" (1981 mm)
To Floor (Typical)
10"
(254 mm)
To Spout
(Bath Only)
4"
(102 mm)
3-7/8"
(98 mm)
Top Of
Bath
3"
(76 mm)
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Notes
Install this product according to the installation
guide.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
Cap the shower outlet if deck-mount spout,
diverter, or handshower is connected to the
spout outlet.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and wall-mount spout.
®
Bath and Shower Trim Set
K-T13133-4B
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 12:48 - US/CA
