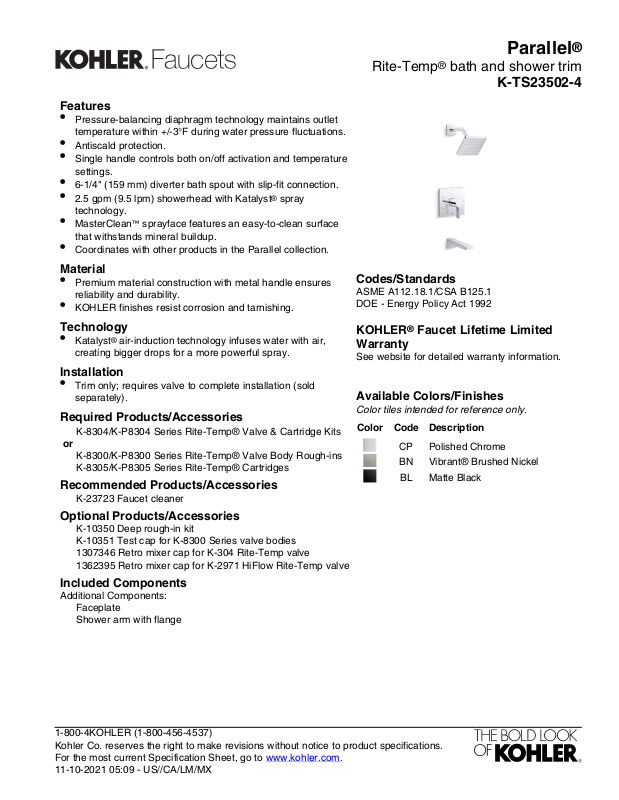

Page 1
Features
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
Antiscald protection.
•
Single handle controls both on/off activation and temperature
settings.
•
6-1/4" (159 mm) diverter bath spout with slip-fit connection.
•
2.5 gpm (9.5 lpm) showerhead with Katalyst® spray
technology.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Coordinates with other products in the Parallel collection.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Technology
•
Katalyst® air-induction technology infuses water with air,
creating bigger drops for a more powerful spray.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-8304/K-P8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300/K-P8300 Series Rite-Temp® Valve Body Rough-ins
K-8305/K-P8305 Series Rite-Temp® Cartridges
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
1307346 Retro mixer cap for K-304 Rite-Temp valve
1362395 Retro mixer cap for K-2971 HiFlow Rite-Temp valve
Included Components
Additional Components:
Faceplate
Shower arm with flange
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
BL Matte Black
Rite-Temp® bath and shower trim
K-TS23502-4
Parallel
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-10-2021 05:09 - US//CA/LM/MX
Page 2
Parallel
Slip-fit:
Extend 1-1/4" OD tube 1-3/8"
(35 mm) from finished wall.
6-1/4"
(159 mm)
2-3/8"
(60 mm)
3-13/16"
(97 mm)
3-5/8"
(92 mm)
Ø 1-1/8"
(29 mm)
Max
3-3/16"
(81 mm)
6-1/4"
(159 mm)
1/2" NPT
9-1/16"
(230 mm)
Typical
2-3/8"
(60 mm)
6-1/4"
(159 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Spout:
Spout reach: 6-1/4" (158 mm)
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 45 psi (3.1 bar)
Notes
Install this product according to the installation
instructions.
®
Rite-Temp® bath and shower trim
K-TS23502-4
