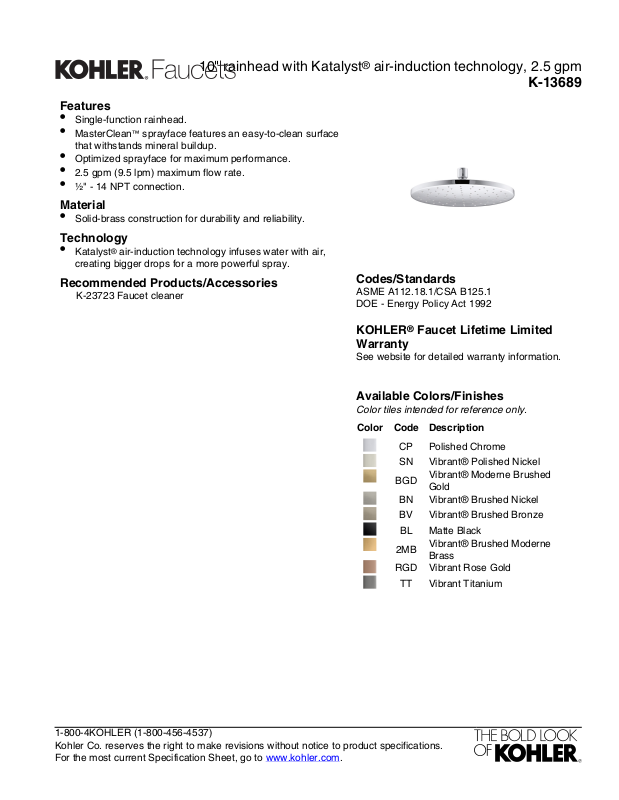

10" rainhead with Katalyst® air-induction technology, 2.5 gpm
Features
•
Single-function rainhead.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Optimized sprayface for maximum performance.
•
2.5 gpm (9.5 lpm) maximum flow rate.
•
½" - 14 NPT connection.
Material
•
Solid-brass construction for durability and reliability.
Technology
•
Katalyst® air-induction technology infuses water with air,
creating bigger drops for a more powerful spray.
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BGD
Vibrant® Moderne Brushed
Gold
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
BL Matte Black
2MB
Vibrant® Brushed Moderne
Brass
RGD Vibrant Rose Gold
TT Vibrant Titanium
K-13689
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10" rainhead with Katalyst® air-induction technology, 2.5 gpm
Ø 10" (254 mm)
2-3/4"
(70 mm)
1/2"-14 NPT
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Notes
Install this product according to the installation
instructions.
K-13689
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
