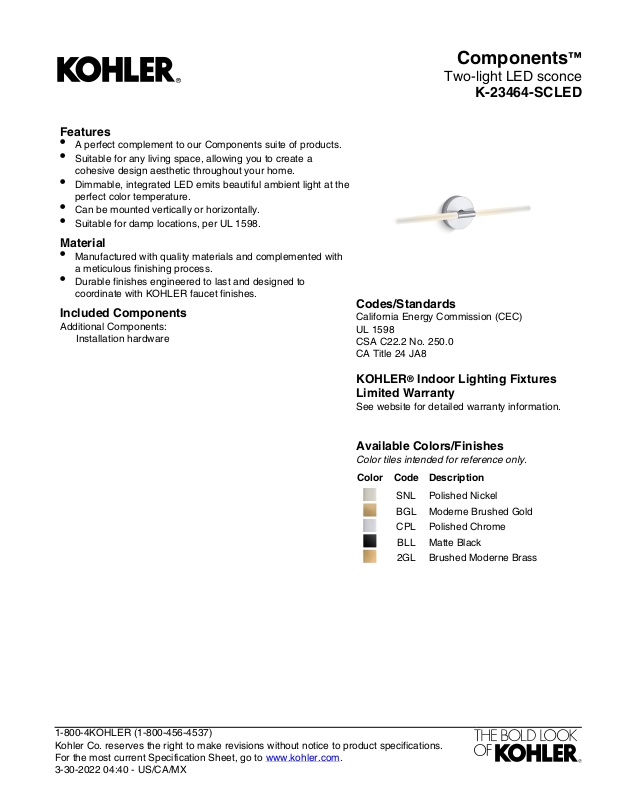

Page 1
Components
Features
•
A perfect complement to our Components suite of products.
•
Suitable for any living space, allowing you to create a
cohesive design aesthetic throughout your home.
•
Dimmable, integrated LED emits beautiful ambient light at the
perfect color temperature.
•
Can be mounted vertically or horizontally.
•
Suitable for damp locations, per UL 1598.
Material
•
Manufactured with quality materials and complemented with
a meticulous finishing process.
•
Durable finishes engineered to last and designed to
coordinate with KOHLER faucet finishes.
Included Components
Additional Components:
Installation hardware
Codes/Standards
California Energy Commission (CEC)
UL 1598
CSA C22.2 No. 250.0
CA Title 24 JA8
KOHLER® Indoor Lighting Fixtures
Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SNL Polished Nickel
BGL Moderne Brushed Gold
CPL Polished Chrome
BLL Matte Black
2GL Brushed Moderne Brass
™
Two-light LED sconce
K-23464-SCLED
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-30-2022 04:40 - US/CA/MX
Page 2
Components
Ø 1"
(25 mm)
1-9/16"
(40 mm)
24" (610 mm)
Ø 5-1/8"
(130 mm)
3-1/4"
(83 mm)
Required Electrical Service
One circuit required.
Lights: 120 V, 60 Hz
Technical Information
All product dimensions are nominal.
Material: Steel, Aluminum, Glass
Number of Lights: 2
Lighting Type: Integrated LED
Number of Shades: 2
Shade Type: Glass - frosted
Electrical component
rating:
LED: 60 Hz, 12 W, 700 Lumens, 3000K
™
Two-light LED sconce
K-23464-SCLED
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-30-2022 04:40 - US/CA/MX
