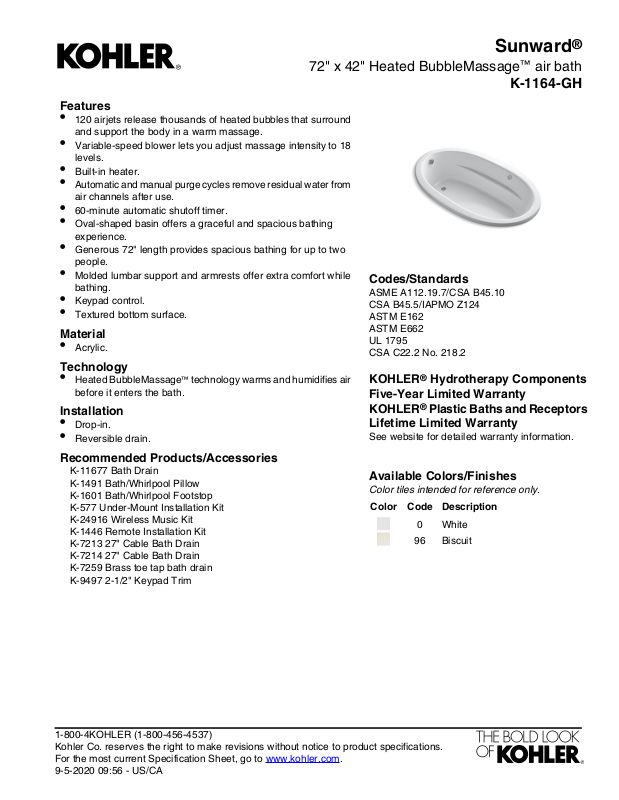

72" x 42" Heated BubbleMassage™ air bath
Features
•
120 airjets release thousands of heated bubbles that surround
and support the body in a warm massage.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Built-in heater.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
60-minute automatic shutoff timer.
•
Oval-shaped basin offers a graceful and spacious bathing
experience.
•
Generous 72" length provides spacious bathing for up to two
people.
•
Molded lumbar support and armrests offer extra comfort while
bathing.
•
Keypad control.
•
Textured bottom surface.
Material
•
Acrylic.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Installation
•
Drop-in.
•
Reversible drain.
Sunward
®
K-1164-GH
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Recommended Products/Accessories
K-11677 Bath Drain
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-577 Under-Mount Installation Kit
K-24916 Wireless Music Kit
K-1446 Remote Installation Kit
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-9497 2-1/2" Keypad Trim
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 09:56 - US/CA
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Page 2

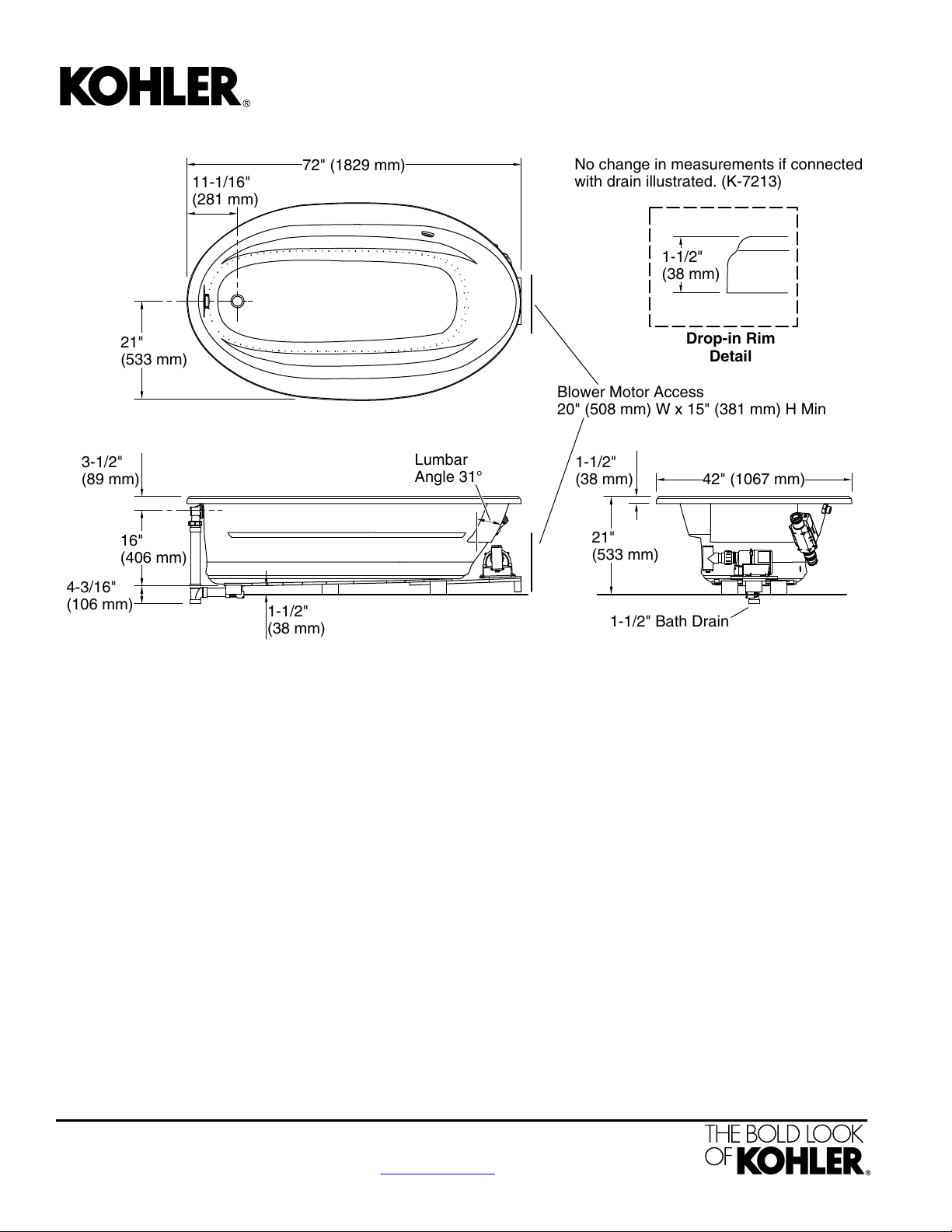

1-1/2"
(38 mm)
21"
(533 mm)
1-1/2"
(38 mm)
42" (1067 mm)
1-1/2"
(38 mm)
4-3/16"
(106 mm)
16"
(406 mm)
3-1/2"
(89 mm)
21"
(533 mm)
11-1/16"
(281 mm)
72" (1829 mm)
Blower Motor Access
20" (508 mm) W x 15" (381 mm) H Min
Lumbar
Angle 31°
1-1/2" Bath Drain
No change in measurements if connected
with drain illustrated. (K-7213)
Drop-in Rim
Detail
Sunward
®
72" x 42" Heated BubbleMassage™ air bath
K-1164-GH
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
Technical Information
All product dimensions are nominal.
Electrical component
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 09:56 - US/CA
rating:
120 V, 15 A, 60 HzBlower:
120 V, 15 A, 60 HzAir bath:
Drop-inInstallation:
EndDrain location:
55-1/4" x 23-1/2" (1403 mm x 597 mm)Basin area, bottom:
64-1/2" x 32" (1638 mm x 813 mm)Basin area, top:
170.5 lbs (77.3 kg)Weight:
37 lbs/ft² (180.6 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
75 gal (283.9 L)Water capacity:
Drop-in, 1042557-7, required, includedTemplate:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
