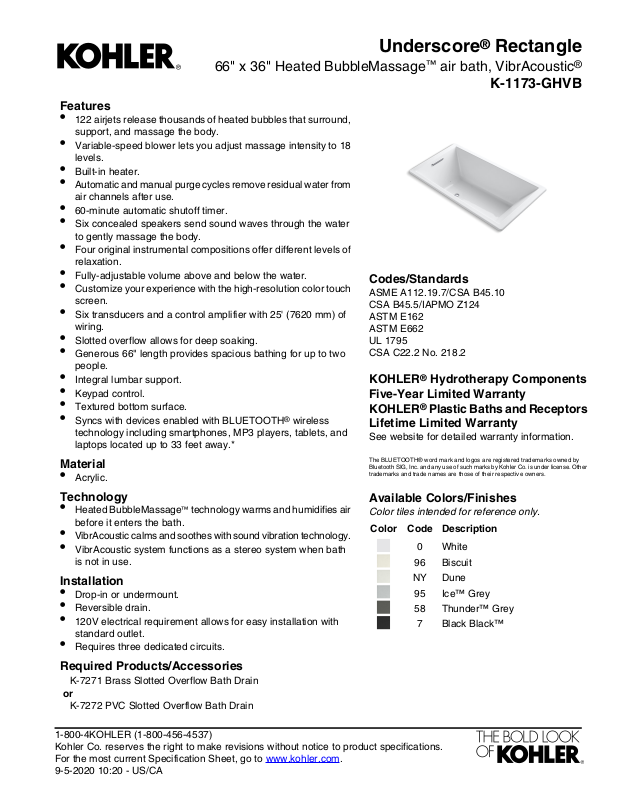

66" x 36" Heated BubbleMassage™ air bath, VibrAcoustic
Features
•
122 airjets release thousands of heated bubbles that surround,
support, and massage the body.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Built-in heater.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
60-minute automatic shutoff timer.
•
Six concealed speakers send sound waves through the water
to gently massage the body.
•
Four original instrumental compositions offer different levels of
relaxation.
•
Fully-adjustable volume above and below the water.
•
Customize your experience with the high-resolution color touch
screen.
•
Six transducers and a control amplifier with 25' (7620 mm) of
wiring.
•
Slotted overflow allows for deep soaking.
•
Generous 66" length provides spacious bathing for up to two
people.
•
Integral lumbar support.
•
Keypad control.
•
Textured bottom surface.
•
Syncs with devices enabled with BLUETOOTH® wireless
technology including smartphones, MP3 players, tablets, and
laptops located up to 33 feet away.*
Material
•
Acrylic.
Underscore® Rectangle
®
K-1173-GHVB
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
The BLUETOOTH® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Kohler Co. is under license. Other
trademarks and trade names are those of their respective owners.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
•
VibrAcoustic calms and soothes with sound vibration technology.
•
VibrAcoustic system functions as a stereo system when bath
is not in use.
Available Colors/Finishes
Color tiles intended for reference only.
Installation
•
Drop-in or undermount.
•
Reversible drain.
•
120V electrical requirement allows for easy installation with
standard outlet.
•
Requires three dedicated circuits.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 10:20 - US/CA
DescriptionCodeColor
White0
Biscuit96
DuneNY
Ice™ Grey95
Thunder™ Grey58
Black Black™7
36" (914 mm)
No change in measurements if connected
with drain illustrated. (K-7272)
Drop-in Rim
Detail
1-1/2" Bath Drain
66" (1676 mm)
Lumbar
Angle 40°
18"
(457 mm)
16-3/4"
(425 mm)
2-7/16"
(62 mm)
18-3/4"
(476 mm)
3-1/4"
(83 mm)
13/16"
(21 mm)
1"
(25 mm)
22"
(559 mm)
1"
(25 mm)
Blower Motor Access
20" (508 mm) W x 15" (381 mm) H Min
Underscore® Rectangle
66" x 36" Heated BubbleMassage™ air bath, VibrAcoustic
K-1173-GHVB
®
Required Electrical Service
Three dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 HzBlower:
120 V, 15 A, 60 HzAir bath:
120 V, 15 A, 60 HzAmplifier:
Technical Information
All product dimensions are nominal.
Drop-in, UndermountInstallation:
EndDrain location:
44-1/2" x 26-1/2" (1130 mm x 673 mm)Basin area, bottom:
60-1/4" x 30-1/4" (1530 mm x 768 mm)Basin area, top:
115 lbs (52.2 kg)Weight:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 10:20 - US/CA
64 lbs/ft² (312.5 kg/m²)Minimum floor load:
17-3/4" (451 mm)Water depth:
102 gal (386.1 L)Water capacity:
Drop-in, 65" x 35" (1651 mm x 889 mm)Cutout:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Amplifier: 120 V, 1.1 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
