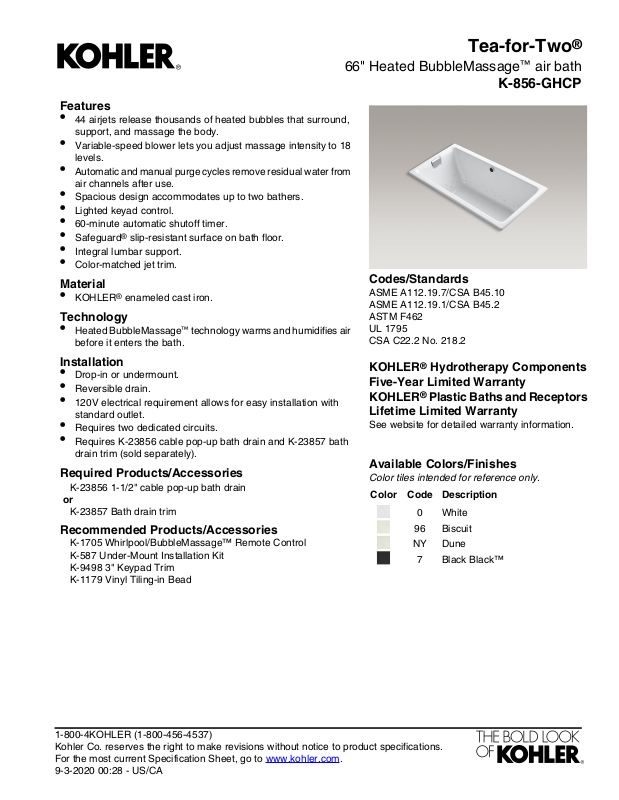

Features
•
44 airjets release thousands of heated bubbles that surround,
support, and massage the body.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
Spacious design accommodates up to two bathers.
•
Lighted keyad control.
•
60-minute automatic shutoff timer.
•
Safeguard® slip-resistant surface on bath floor.
•
Integral lumbar support.
•
Color-matched jet trim.
Material
•
KOHLER® enameled cast iron.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Tea-for-Two
®
66" Heated BubbleMassage™ air bath
K-856-GHCP
Codes/Standards
ASME A112.19.7/CSA B45.10
ASME A112.19.1/CSA B45.2
ASTM F462
UL 1795
CSA C22.2 No. 218.2
Installation
•
Drop-in or undermount.
•
Reversible drain.
•
120V electrical requirement allows for easy installation with
standard outlet.
•
Requires two dedicated circuits.
•
Requires K-23856 cable pop-up bath drain and K-23857 bath
drain trim (sold separately).
Required Products/Accessories
K-23856 1-1/2" cable pop-up bath drain
or
K-23857 Bath drain trim
Recommended Products/Accessories
K-1705 Whirlpool/BubbleMassage™ Remote Control
K-587 Under-Mount Installation Kit
K-9498 3" Keypad Trim
K-1179 Vinyl Tiling-in Bead
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-3-2020 00:28 - US/CA
Lumbar Angle 23°
Blower Motor Access
20" (508 mm) W x 15" (381 mm) H Min
3/4"
(19 mm)
1-1/2"
Bath Drain
No change in measurements if connected
with drain illustrated. (K-7169AF)
Drop-in Rim
Detail
18"
(457 mm)
3-15/16"
(100 mm)
66" (1676 mm)
15-7/8"
(403 mm)
2-7/16"
(62 mm)
20-7/8"
(530 mm)
3-1/8"
(79 mm)
5/8"
(16 mm)
3/4"
(19 mm)
36" (914 mm)
24"
(610 mm)
Tea-for-Two
®
66" Heated BubbleMassage™ air bath
K-856-GHCP
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
Technical Information
All product dimensions are nominal.
Cutout:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-3-2020 00:28 - US/CA
120 V, 15 A, 60 HzBlower:
120 V, 15 A, 60 HzAir bath:
Drop-in, UndermountInstallation:
EndDrain location:
45" x 25" (1143 mm x 635 mm)Basin area, bottom:
58" x 29" (1473 mm x 737 mm)Basin area, top:
510 lbs (231.3 kg)Weight:
86 lbs/ft² (419.9 kg/m²)Minimum floor load:
19-1/2" (495 mm)Water depth:
105 gal (397.5 L)Water capacity:
Drop-in, 64-1/2" x 34-1/2" (1638 mm x
876 mm)
K-587, not required, not includedTemplate:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
