Features
•
44 airjets release thousands of heated bubbles that surround,
support, and massage the body.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
Generous 72" length and spacious design accommodates up
to two bathers.
•
Lighted keyad control.
•
60-minute automatic shutoff timer.
•
Safeguard® slip-resistant surface on bath floor.
•
Integral lumbar support.
•
Color-matched jet trim.
Material
•
KOHLER® enameled cast iron.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Installation
•
Drop-in or undermount.
•
Reversible drain.
•
120V electrical requirement allows for easy installation with
standard outlet.
•
Requires two dedicated circuits.
•
Requires K-23856 cable pop-up bath drain and K-23857 bath
drain trim (sold separately).
Required Products/Accessories
K-23856 1-1/2" cable pop-up bath drain
or
K-23857 Bath drain trim
Recommended Products/Accessories
K-1705 Whirlpool/BubbleMassage™ Remote Control
K-587 Under-Mount Installation Kit
K-9498 3" Keypad Trim
K-1179 Vinyl Tiling-in Bead
Tea-for-Two
®
72" Heated BubbleMassage™ air bath
K-865-GHBN
Codes/Standards
ASME A112.19.7/CSA B45.10
ASME A112.19.1/CSA B45.2
ASTM F462
UL 1795
CSA C22.2 No. 218.2
KOHLER® Enameled Cast Iron Bath
and Shower Base Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-3-2020 00:42 - US/CA

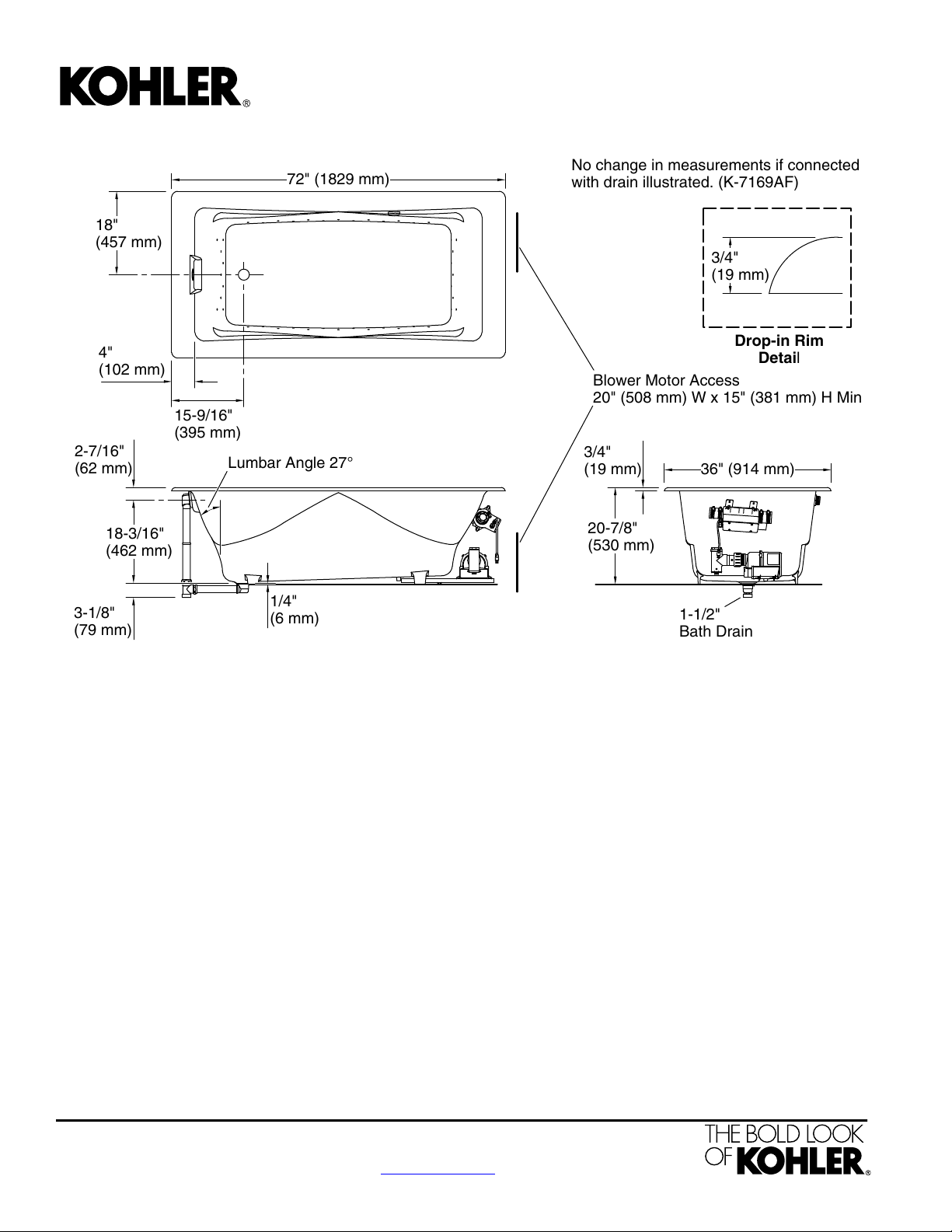

No change in measurements if connected
with drain illustrated. (K-7169AF)
36" (914 mm)
Drop-in Rim
Detail
1-1/2"
Bath Drain
Blower Motor Access
20" (508 mm) W x 15" (381 mm) H Min
Lumbar Angle 27°
18"
(457 mm)
72" (1829 mm)
4"
(102 mm)
15-9/16"
(395 mm)
2-7/16"
(62 mm)
18-3/16"
(462 mm)
3-1/8"
(79 mm)
1/4"
(6 mm)
3/4"
(19 mm)
20-7/8"
(530 mm)
3/4"
(19 mm)
Tea-for-Two
®
72" Heated BubbleMassage™ air bath
K-865-GHBN
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 HzBlower:
120 V, 15 A, 60 HzAir bath:
Technical Information
All product dimensions are nominal.
Drop-in, UndermountInstallation:
EndDrain location:
49" x 22" (1245 mm x 559 mm)Basin area, bottom:
62" x 28" (1575 mm x 711 mm)Basin area, top:
Cutout:
Electrical component
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-3-2020 00:42 - US/CA
rating:
455 lbs (206.4 kg)Weight:
80 lbs/ft² (390.6 kg/m²)Minimum floor load:
17" (432 mm)Water depth:
89 gal (336.9 L)Water capacity:
Drop-in, 70-1/4" x 34-1/2" (1784 mm x
876 mm)
K-582, required, not includedTemplate:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
