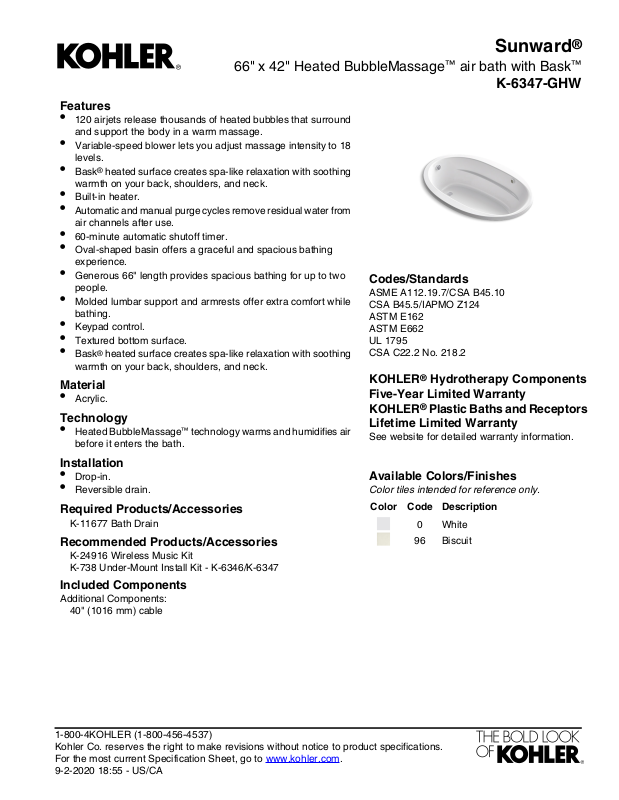

66" x 42" Heated BubbleMassage™ air bath with Bask
Features
•
120 airjets release thousands of heated bubbles that surround
and support the body in a warm massage.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
•
Built-in heater.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
60-minute automatic shutoff timer.
•
Oval-shaped basin offers a graceful and spacious bathing
experience.
•
Generous 66" length provides spacious bathing for up to two
people.
•
Molded lumbar support and armrests offer extra comfort while
bathing.
•
Keypad control.
•
Textured bottom surface.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
Material
•
Acrylic.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Sunward
®
™
K-6347-GHW
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Installation
•
Drop-in.
•
Reversible drain.
Available Colors/Finishes
Color tiles intended for reference only.
Required Products/Accessories
K-11677 Bath Drain
Recommended Products/Accessories
K-24916 Wireless Music Kit
K-738 Under-Mount Install Kit - K-6346/K-6347
Included Components
Additional Components:
40" (1016 mm) cable
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 18:55 - US/CA
DescriptionCodeColor
White0
Biscuit96
21"
(533 mm)
3/8"
(10 mm)
16-1/16"
(408 mm)
Drop-in Rim
Detail
No change in measurements if connected
with drain illustrated. (K-7213)
1-1/2" Bath Drain
Lumbar
Angle 28°
Blower Motor Access
30" (762 mm) W x 15" (381 mm) H Min
66" (1676 mm)
10-13/16"
(275 mm)
3-1/2"
(89 mm)
4-3/16"
(106 mm)
1-1/2"
(38 mm)
20"
(508 mm)
1-1/2"
(38 mm)
42" (1067 mm)
Sunward
66" x 42" Heated BubbleMassage™ air bath with Bask
K-6347-GHW
®
™
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 HzBlower, Heated
Surface:
120 V, 15 A, 60 HzAir bath:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
EndDrain location:
48-5/8" x 24-1/2" (1235 mm x 622 mm)Basin area, bottom:
60" x 32-3/16" (1523 mm x 818 mm)Basin area, top:
122 lbs (55.3 kg)Weight:
34 lbs/ft² (166 kg/m²)Minimum floor load:
14-5/16" (364 mm)Water depth:
70 gal (265 L)Water capacity:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 18:55 - US/CA
Drop-in, 1233384-7, not required, includedTemplate:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65
