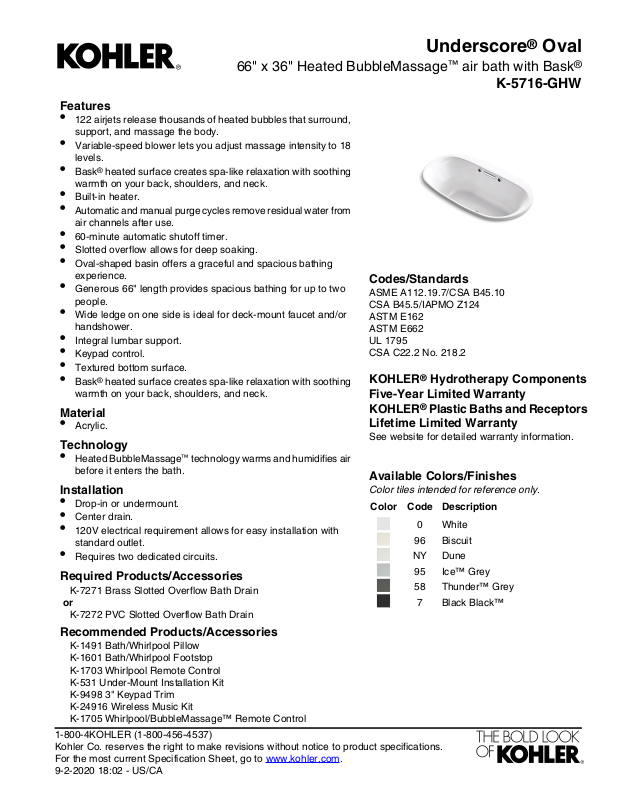

66" x 36" Heated BubbleMassage™ air bath with Bask
Features
•
122 airjets release thousands of heated bubbles that surround,
support, and massage the body.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
•
Built-in heater.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
60-minute automatic shutoff timer.
•
Slotted overflow allows for deep soaking.
•
Oval-shaped basin offers a graceful and spacious bathing
experience.
•
Generous 66" length provides spacious bathing for up to two
people.
•
Wide ledge on one side is ideal for deck-mount faucet and/or
handshower.
•
Integral lumbar support.
•
Keypad control.
•
Textured bottom surface.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
Material
•
Acrylic.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Installation
•
Drop-in or undermount.
•
Center drain.
•
120V electrical requirement allows for easy installation with
standard outlet.
•
Requires two dedicated circuits.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Underscore® Oval
®
K-5716-GHW
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Ice™ Grey95
Thunder™ Grey58
Black Black™7
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-1703 Whirlpool Remote Control
K-531 Under-Mount Installation Kit
K-9498 3" Keypad Trim
K-24916 Wireless Music Kit
K-1705 Whirlpool/BubbleMassage™ Remote Control
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 18:02 - US/CA
Lumbar
Angle 30°
1-1/2" Bath Drain
18-9/16"
(471 mm)
1"
(25 mm)
3-1/2"
(89 mm)
1-1/2"
(38 mm)
Drop-in Rim
Detail
No change in measurements if connected
with drain illustrated. (K-7272)
Blower Motor Access
30" (508 mm) W x 15" (381 mm) H Min
36" (914 mm)
2-5/8"
(67 mm)
22-1/8"
(562 mm)
1-1/2"
(38 mm)
Lumbar
Angle 30°
19"
(483 mm)
33" (838 mm)
66" (1676 mm)
Underscore® Oval
66" x 36" Heated BubbleMassage™ air bath with Bask
K-5716-GHW
®
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 HzBlower, Heated
Surface:
120 V, 15 A, 60 HzAir bath:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Technical Information
All product dimensions are nominal.
Drop-in, UndermountInstallation:
CenterDrain location:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 18:02 - US/CA
47" x 26-1/4" (1193 mm x 666 mm)Basin area, bottom:
61-3/16" x 28-3/8" (1554 mm x 721 mm)Basin area, top:
90 lbs (40.8 kg)Weight:
84.9 lbs/ft² (414.5 kg/m²)Minimum floor load:
17-9/16" (446 mm)Water depth:
85.5 gal (323.7 L)Water capacity:
Drop-in, 1268439-7, required, includedTemplate:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65
