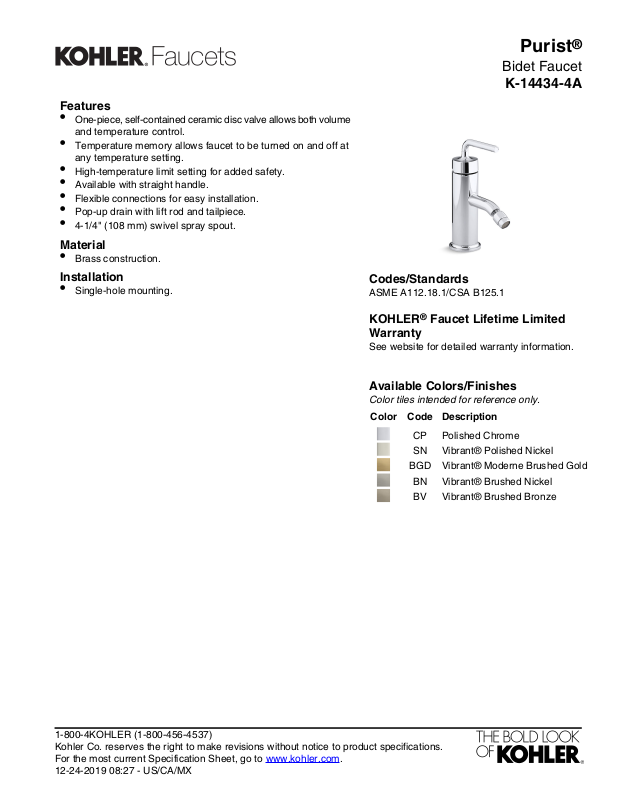

Page 1
Features
•
One-piece, self-contained ceramic disc valve allows both volume
and temperature control.
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
High-temperature limit setting for added safety.
•
Available with straight handle.
•
Flexible connections for easy installation.
•
Pop-up drain with lift rod and tailpiece.
•
4-1/4" (108 mm) swivel spray spout.
Material
•
Brass construction.
Purist
®
Bidet Faucet
K-14434-4A
Installation
•
Single-hole mounting.
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Moderne Brushed GoldBGD
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 08:27 - US/CA/MX
Page 2
Supply Lines
Pop-Up Drain
1-1/4" OD
4-1/4"
(108 mm)
Ø 2-1/8"
(54 mm)
5"
(127 mm)
4"
(102 mm)
20-1/2"
(521 mm)
1-3/4"
(78 mm)
Max
8"
(203 mm)
Ø 2-1/4"
(57 mm)
3-1/8"
(79 mm)
2-3/8"
(60 mm)
Purist
®
Bidet Faucet
K-14434-4A
Technical Information
All product dimensions are nominal.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 08:27 - US/CA/MX
Notes
Install this product according to the installation
instructions.
