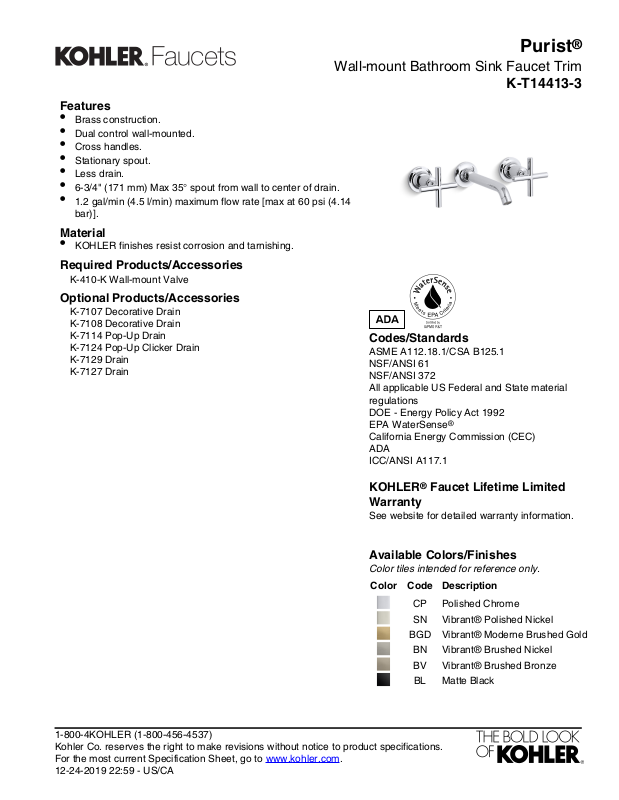

Page 1
Features
•
Brass construction.
•
Dual control wall-mounted.
•
Cross handles.
•
Stationary spout.
•
Less drain.
•
6-3/4" (171 mm) Max 35° spout from wall to center of drain.
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Material
•
KOHLER finishes resist corrosion and tarnishing.
Required Products/Accessories
K-410-K Wall-mount Valve
Optional Products/Accessories
K-7107 Decorative Drain
K-7108 Decorative Drain
K-7114 Pop-Up Drain
K-7124 Pop-Up Clicker Drain
K-7129 Drain
K-7127 Drain
Purist
®
Wall-mount Bathroom Sink Faucet Trim
K-T14413-3
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 22:59 - US/CA
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Moderne Brushed GoldBGD
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Matte BlackBL
Page 2
Ø 2" (51 mm)
4-3/8" (111 mm) Max
3-1/8" (79 mm) Min
6-3/4" (171 mm) Max
5-1/2" (140 mm) Min
2-5/8" (67 mm) Max
1-3/8" (35 mm) Min
3-1/2" (89 mm) Max
2-1/4" (57 mm) Min
Ø 2" (51 mm)
4"
(102 mm)
9" (229 mm)
Finished Wall
3" (76 mm)
5/8" OD
Hot Supply
5/8" OD
Cold Supply
5-1/2"
(140 mm)
1-1/2"
(38 mm)
1-1/2"
(38 mm)
3-7/16"
(87 mm)
3-1/2"
(89 mm)
4-1/4"
(108 mm)
5/8"
(16 mm)
8-1/2"
(216 mm)
15/16"
(24 mm)
4"
(102 mm)
15/16"
(24 mm)
Purist
®
Wall-mount Bathroom Sink Faucet Trim
K-T14413-3
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Spout:
6-3/4" (171 mm)Spout reach:
Notes
Install this product according to the installation
guide.
The distance between the bottom of spout and
top of the fixture rim must not be less than 1-1/2"
(38 mm) and not greater than 6" (152 mm).
Three 1-1/2" (38 mm) diameter cutout holes are
required for spout and handles.
ADA compliant when installed to the specific
requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 22:59 - US/CA
