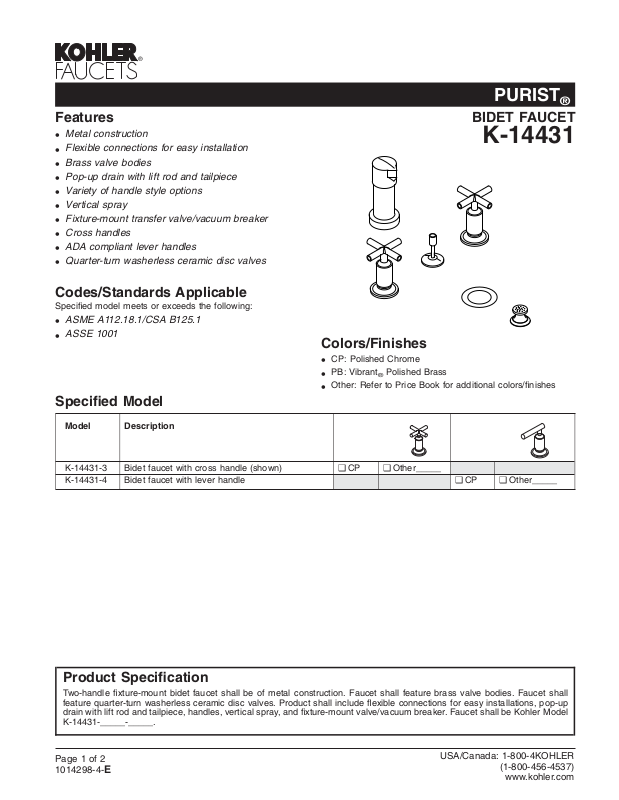

Page 1
PURIST
®
Features
Metal construction
•
Flexible connections for easy installation
•
Brass valve bodies
•
Pop-up drain with lift rod and tailpiece
•
Variety of handle style options
•
Vertical spray
•
Fixture-mount transfer valve/vacuum breaker
•
Cross handles
•
ADA compliant lever handles
•
Quarter-turn washerless ceramic disc valves
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
ASSE 1001
•
Specified Model
BIDET FAUCET
K-14431
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description
K-14431-3 Bidet faucet with cross handle (shown) ❑ CP ❑ Other_____
K-14431-4 Bidet faucet with lever handle ❑ CP ❑ Other_____
Product Specification
Two-handle fixture-mount bidet faucet shall be of metal construction. Faucet shall feature brass valve bodies. Faucet shall
feature quarter-turn washerless ceramic disc valves. Product shall include flexible connections for easy installations, pop-up
drain with lift rod and tailpiece, handles, vertical spray, and fixture-mount valve/vacuum breaker. Faucet shall be Kohler Model
K-14431-_____-_____.
Page 1 of 2
1014298-4-
USA/Canada: 1-800-4KOHLER
E
(1-800-456-4537)
www.kohler.com
Page 2
PURIST
®
Installation Notes
Install this product according to the installation guide.
Ø 1-1/8"
3-1/2"
(89 mm)
5-1/2" (140 mm)
Ø 1-5/8"
(41 mm)
3" (76 mm)
Ø 2" (50 mm)
Short
Cross
Ø 9/16"
3-5/8"
(92 mm)
7-3/4"
(197 mm)
2-3/16"
(56 mm)
Ø 2" (50 mm)
Short
Lever
5/8"
(16 mm)
2-5/8" (67 mm)
4"
(102 mm)
2-1/8"
(54 mm)
1-1/4" OD
2-1/4" (57 mm)
6-1/8"
(156 mm)
PURIST®BIDET FAUCET
Page2of2
1014298-4-
E
Product Diagram
