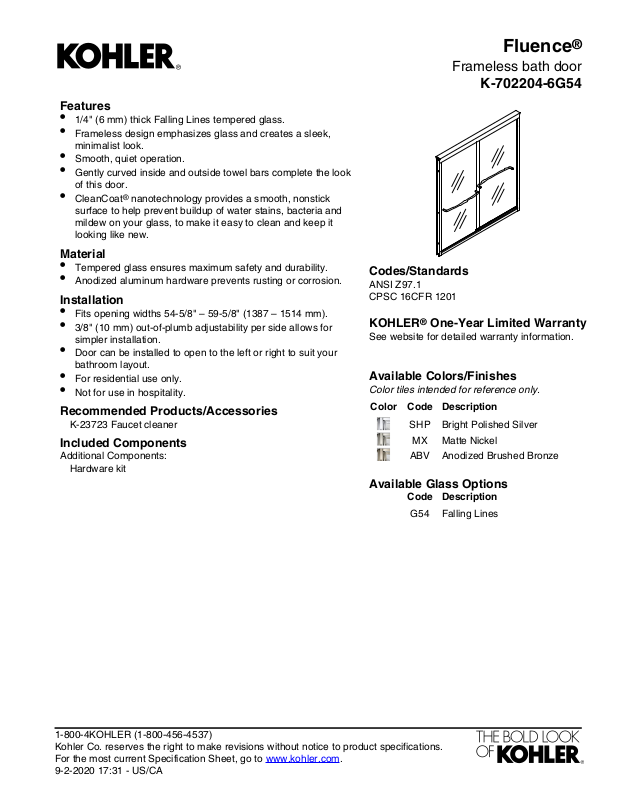

Page 1
Features
•
1/4" (6 mm) thick Falling Lines tempered glass.
•
Frameless design emphasizes glass and creates a sleek,
minimalist look.
•
Smooth, quiet operation.
•
Gently curved inside and outside towel bars complete the look
of this door.
•
CleanCoat® nanotechnology provides a smooth, nonstick
surface to help prevent buildup of water stains, bacteria and
mildew on your glass, to make it easy to clean and keep it
looking like new.
Material
•
Tempered glass ensures maximum safety and durability.
•
Anodized aluminum hardware prevents rusting or corrosion.
Installation
•
Fits opening widths 54-5/8" – 59-5/8" (1387 – 1514 mm).
•
3/8" (10 mm) out-of-plumb adjustability per side allows for
simpler installation.
•
Door can be installed to open to the left or right to suit your
bathroom layout.
•
For residential use only.
•
Not for use in hospitality.
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components:
Hardware kit
Fluence
®
Frameless bath door
K-702204-6G54
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Matte NickelMX
Anodized Brushed BronzeABV
Available Glass Options
DescriptionCode
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 17:31 - US/CA
Falling LinesG54
Page 2
*50-7/8"
(1292 mm)
7-1/4"
(184 mm)
*Walk-through
54-5/8" (1387 mm) Min
59-5/8" (1514 mm) Max
55-7/16"
(1408 mm)
*22-15/16" (583 mm) Min
*27-15/16" (710 mm) Max
2-1/8"
(54 mm)
1-15/16"
(49 mm)
1-5/8"
(41 mm)
1-1/2"
(38 mm)
3"
(76 mm)
3-1/8"
(79 mm)
Fluence
®
Frameless bath door
K-702204-6G54
Technical Information
All product dimensions are nominal.
For bath installationInstallation type:
54-5/8" (1387 mm)Opening Width - Min:
59-5/8" (1514 mm)Opening Width - Max:
22-15/16" (583 mm)Walk-through - Min:
Glass coating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 17:31 - US/CA
27-15/16" (710 mm)Walk-through - Max:
1/4" (6 mm)Glass thickness:
CleanCoat
®
Notes
Install this product according to the installation
instructions.
The vertical opening should be a minimum of
57-1/2" (1461 mm) to allow for installation
clearance.
