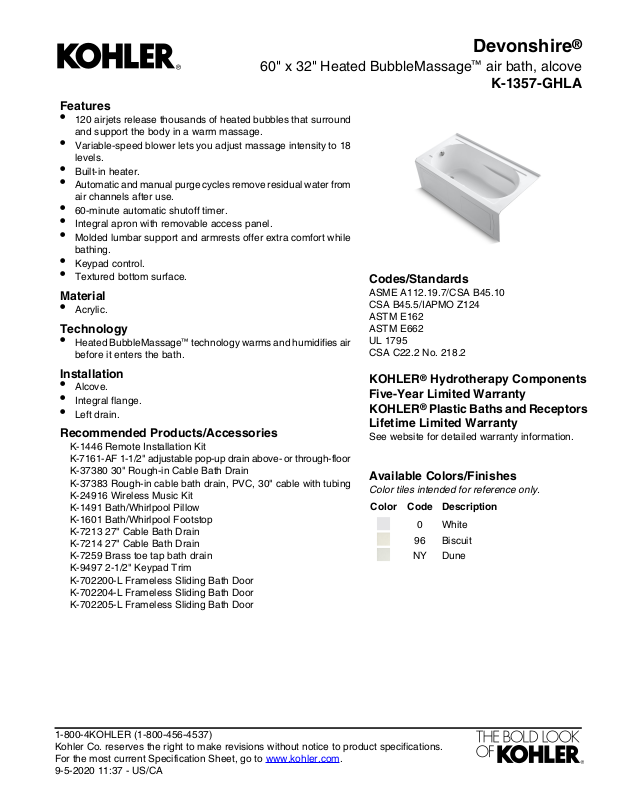

Page 1
60" x 32" Heated BubbleMassage™ air bath, alcove
Features
•
120 airjets release thousands of heated bubbles that surround
and support the body in a warm massage.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Built-in heater.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
60-minute automatic shutoff timer.
•
Integral apron with removable access panel.
•
Molded lumbar support and armrests offer extra comfort while
bathing.
•
Keypad control.
•
Textured bottom surface.
Material
•
Acrylic.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Devonshire
K-1357-GHLA
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
®
Installation
•
Alcove.
•
Integral flange.
•
Left drain.
Recommended Products/Accessories
K-1446 Remote Installation Kit
K-7161-AF 1-1/2" adjustable pop-up drain above- or through-floor
K-37380 30" Rough-in Cable Bath Drain
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-24916 Wireless Music Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-9497 2-1/2" Keypad Trim
K-702200-L Frameless Sliding Bath Door
K-702204-L Frameless Sliding Bath Door
K-702205-L Frameless Sliding Bath Door
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 11:37 - US/CA
Page 2
1-1/4"
(32 mm)
7/8"
(22 mm)
16-1/16"
(408 mm)
21-1/4"
(540 mm)
32" (813 mm)
4-3/16"
(106 mm)
4-1/4"
(108 mm)
60" (1524 mm)
15-3/4"
(400 mm)
9" (229 mm)
No change in measurements if connected
with drain illustrated. (K-7213)
Lumbar
Angle 23°
1-1/4"
(32 mm)
3/8"
(10 mm) R
Integral Flange Detail
16-1/4"
(413 mm)
1-1/2" Bath Drain
Devonshire
®
60" x 32" Heated BubbleMassage™ air bath, alcove
K-1357-GHLA
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 HzBlower:
120 V, 15 A, 60 HzAir bath:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Technical Information
All product dimensions are nominal.
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 11:37 - US/CA
Three-wall alcoveInstallation:
LeftDrain location:
42" x 20" (1067 mm x 508 mm)Basin area, bottom:
51" x 24" (1295 mm x 610 mm)Basin area, top:
143.5 lbs (65.1 kg)Weight:
47 lbs/ft² (229.5 kg/m²)Minimum floor load:
16" (406 mm)Water depth:
60 gal (227.1 L)Water capacity:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
