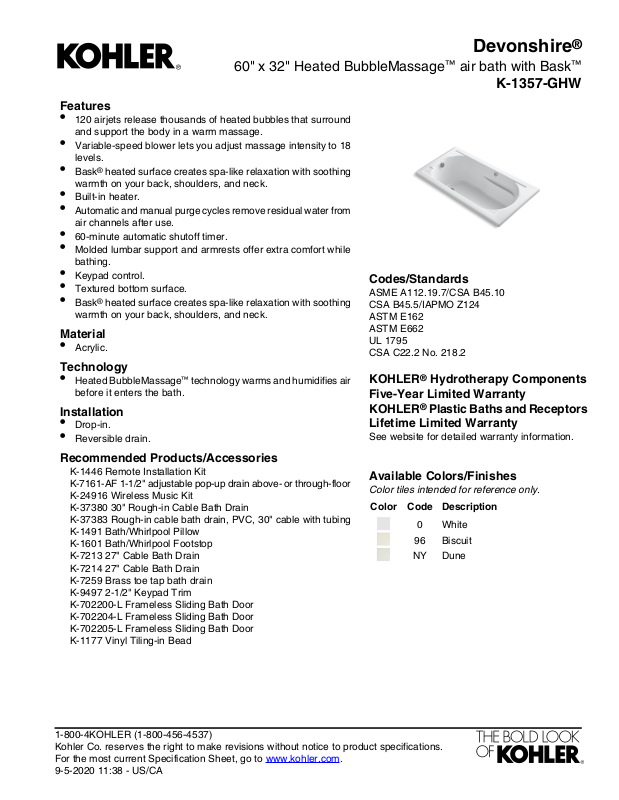

Page 1
60" x 32" Heated BubbleMassage™ air bath with Bask
Features
•
120 airjets release thousands of heated bubbles that surround
and support the body in a warm massage.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
•
Built-in heater.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
60-minute automatic shutoff timer.
•
Molded lumbar support and armrests offer extra comfort while
bathing.
•
Keypad control.
•
Textured bottom surface.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
Material
•
Acrylic.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Installation
•
Drop-in.
•
Reversible drain.
Devonshire
®
™
K-1357-GHW
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Recommended Products/Accessories
K-1446 Remote Installation Kit
K-7161-AF 1-1/2" adjustable pop-up drain above- or through-floor
K-24916 Wireless Music Kit
K-37380 30" Rough-in Cable Bath Drain
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-9497 2-1/2" Keypad Trim
K-702200-L Frameless Sliding Bath Door
K-702204-L Frameless Sliding Bath Door
K-702205-L Frameless Sliding Bath Door
K-1177 Vinyl Tiling-in Bead
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 11:38 - US/CA
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Page 2
9" (229 mm)
4-3/16"
(106 mm)
Lumbar
Angle 23°
1-1/2"
(38 mm)
No change in measurements if connected
with drain illustrated. (K-7213)
Drop-in Rim
Detail
1-1/2"
(38 mm)
16"
(406 mm)
60" (1524 mm)
3"
(76 mm)
7/8"
(22 mm)
32" (813 mm)
20"
(508 mm)
16-1/16"
(408 mm)
Blower Motor Access
30" (762 mm) W x 15" (381 mm) H Min
1-1/2" Bath Drain
Devonshire
60" x 32" Heated BubbleMassage™ air bath with Bask
K-1357-GHW
®
™
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
Surface:
Technical Information
All product dimensions are nominal.
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 11:38 - US/CA
120 V, 15 A, 60 HzBlower, Heated
120 V, 15 A, 60 HzAir bath:
Drop-inInstallation:
EndDrain location:
42" x 20" (1067 mm x 508 mm)Basin area, bottom:
51" x 24" (1295 mm x 610 mm)Basin area, top:
137.5 lbs (62.4 kg)Weight:
47 lbs/ft² (229.5 kg/m²)Minimum floor load:
16" (406 mm)Water depth:
60 gal (227.1 L)Water capacity:
Drop-in, 58" x 30" (1473 mm x 762 mm)Cutout:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
