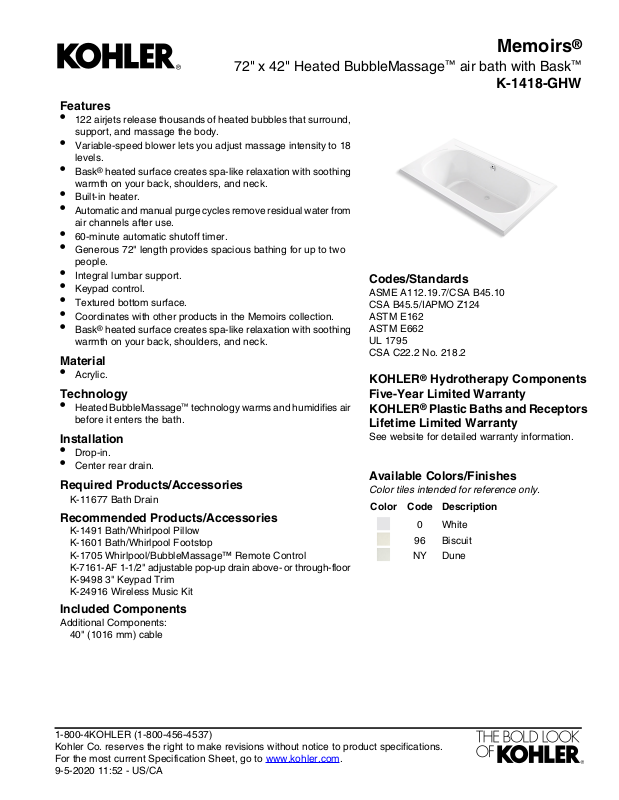

Page 1
72" x 42" Heated BubbleMassage™ air bath with Bask
Features
•
122 airjets release thousands of heated bubbles that surround,
support, and massage the body.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
•
Built-in heater.
•
Automatic and manual purge cycles remove residual water from
air channels after use.
•
60-minute automatic shutoff timer.
•
Generous 72" length provides spacious bathing for up to two
people.
•
Integral lumbar support.
•
Keypad control.
•
Textured bottom surface.
•
Coordinates with other products in the Memoirs collection.
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
Material
•
Acrylic.
Technology
•
Heated BubbleMassage™ technology warms and humidifies air
before it enters the bath.
Installation
•
Drop-in.
•
Center rear drain.
Required Products/Accessories
K-11677 Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-1705 Whirlpool/BubbleMassage™ Remote Control
K-7161-AF 1-1/2" adjustable pop-up drain above- or through-floor
K-9498 3" Keypad Trim
K-24916 Wireless Music Kit
Memoirs
®
™
K-1418-GHW
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Included Components
Additional Components:
40" (1016 mm) cable
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 11:52 - US/CA
Page 2
42" (1067 mm)
22"
(559 mm)
1-7/8"
(48 mm)
36" (914 mm)
72" (1829 mm)
Lumbar
Angle 25°
11-13/16"
(300 mm)
1-1/2" Bath Drain
No change in measurements if connected
with drain illustrated. (K-7161-AF)
Drop-in Rim
Detail
1-7/8"
(48 mm)
Lumbar
Angle 25°
2-7/8"
(73 mm)
3"
(76 mm)
18-1/16"
(459 mm)
15/16"
(24 mm)
Blower Motor Access
34" (864 mm) W x 15" (381 mm) H Min
Memoirs
72" x 42" Heated BubbleMassage™ air bath with Bask
K-1418-GHW
®
™
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
Surface:
120 V, 15 A, 60 HzBlower, Heated
120 V, 15 A, 60 HzAir bath:
Technical Information
All product dimensions are nominal.
Cutout:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-5-2020 11:52 - US/CA
Drop-inInstallation:
48" x 27" (1219 mm x 686 mm)Basin area, bottom:
60" x 30" (1524 mm x 762 mm)Basin area, top:
162 lbs (73.5 kg)Weight:
54 lbs/ft² (263.7 kg/m²)Minimum floor load:
16" (406 mm)Water depth:
94 gal (355.8 L)Water capacity:
Drop-in, 70-1/2" x 40-1/2" (1791 mm x
1029 mm)
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
