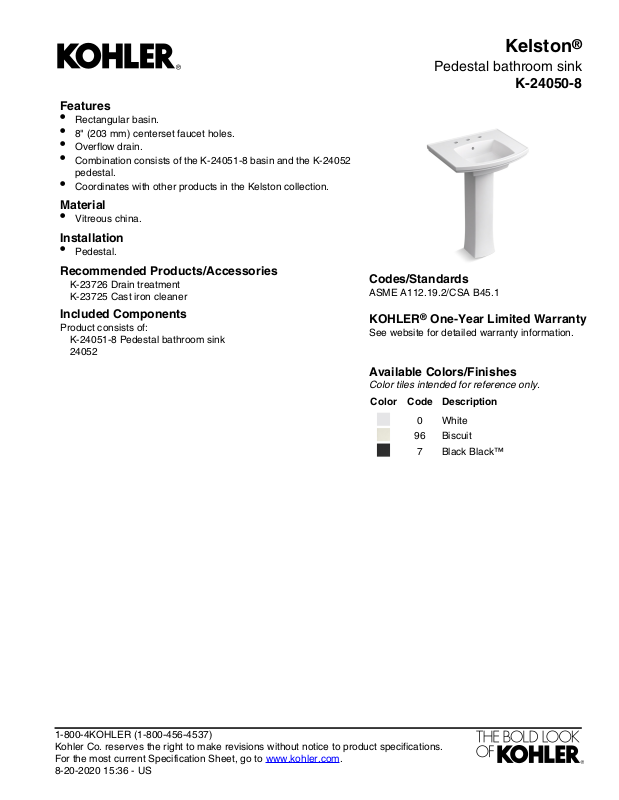

Features
•
Rectangular basin.
•
8" (203 mm) centerset faucet holes.
•
Overflow drain.
•
Combination consists of the K-24051-8 basin and the K-24052
pedestal.
•
Coordinates with other products in the Kelston collection.
Material
•
Vitreous china.
Installation
•
Pedestal.
Kelston
®
Pedestal bathroom sink
K-24050-8
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Included Components
Product consists of:
K-24051-8 Pedestal bathroom sink
24052
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-20-2020 15:36 - US
Ø 1/2" (13 mm)
Anchor Holes in Lavatory
16-3/8"
(416 mm)
10"
(254 mm)
6-15/16"
(176 mm)
1-11/16"
(43 mm)
6" (152 mm)
20"
(508 mm)
10"
(254 mm)
24" (610 mm)
4" (102 mm)
2-5/8"
(67 mm)
Finished Floor
3/8" Hot
3/8" Cold
1-1/4" OD
35"
(889 mm)
10"
(254 mm)
6-3/16"
(157 mm)
Kelston
®
Pedestal bathroom sink
K-24050-8
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
PedestalInstallation:
Bowl area (Center):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-20-2020 15:36 - US
Length: 14-5/16" (364 mm)
Width: 13" (330 mm)
Bowl depth: 5-1/8" (130 mm)
With overflow: Yes
Water depth: 3-1/16" (77 mm)
YesWith overflow:
3Number of deck holes:
8" (203 mm)Faucet hole spacing:
Notes
Install this product according to the installation
instructions.
