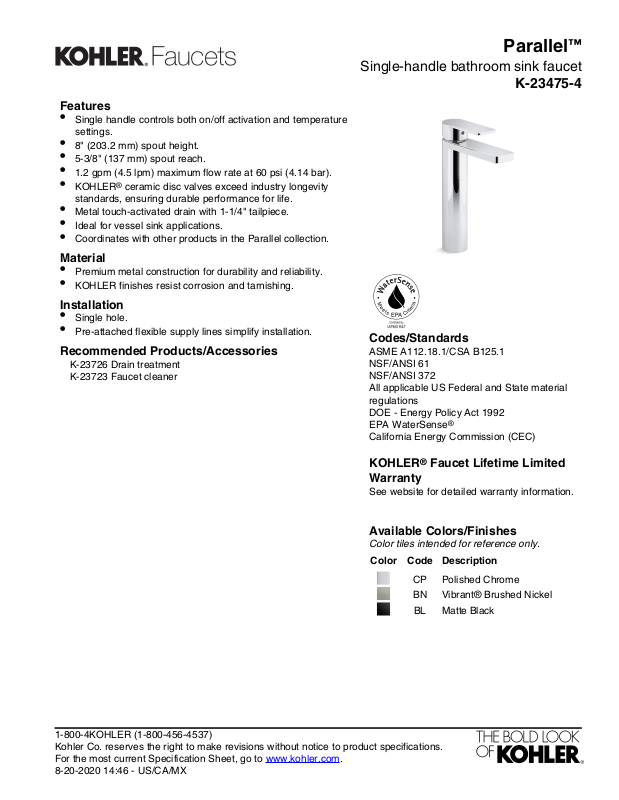

Page 1
Features
•
Single handle controls both on/off activation and temperature
settings.
•
8" (203.2 mm) spout height.
•
5-3/8" (137 mm) spout reach.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER® ceramic disc valves exceed industry longevity
standards, ensuring durable performance for life.
•
Metal touch-activated drain with 1-1/4" tailpiece.
•
Ideal for vessel sink applications.
•
Coordinates with other products in the Parallel collection.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single hole.
•
Pre-attached flexible supply lines simplify installation.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Parallel
™
Single-handle bathroom sink faucet
K-23475-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-20-2020 14:46 - US/CA/MX
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Matte BlackBL
Page 2
5-1/8"
(130 mm)
3-13/16"
(97 mm)
Ø 2-1/4"
(57 mm)
10-1/4"
(260 mm)
8-1/16"
(205 mm)
18-1/2"
(470 mm)
Ø 2"
(51 mm)
2"
(51 mm)
Max
Ø 1-1/2"
(38 mm)
5-3/8"
(137 mm)
1-1/4"
OD
1-7/8"
(48 mm)
3/8" Compression Fittings
Parallel
™
Single-handle bathroom sink faucet
K-23475-4
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
YesDrain included:
Spout:
5-5/16" (135 mm)Spout reach:
Notes
Install this product according to the installation
instructions.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-20-2020 14:46 - US/CA/MX
