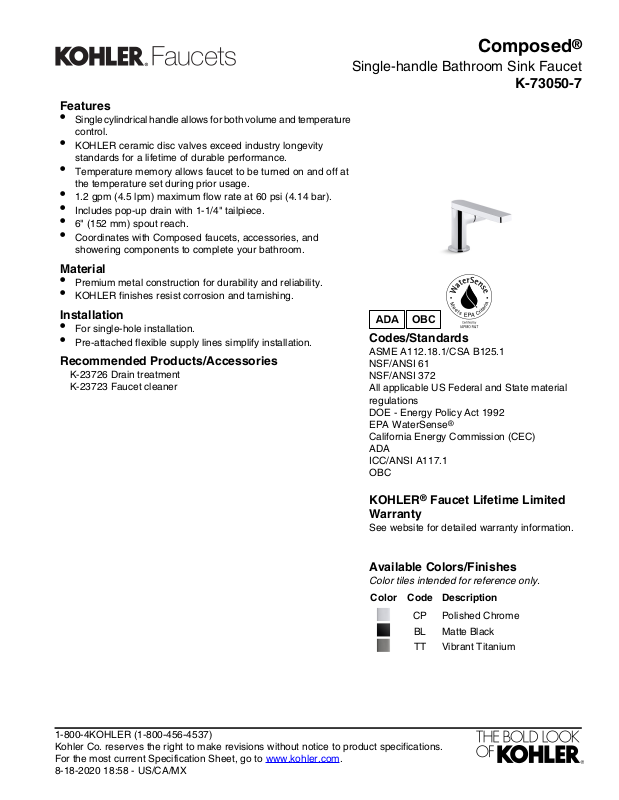

Features
OBC
•
Single cylindrical handle allows for both volume and temperature
control.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
Includes pop-up drain with 1-1/4" tailpiece.
•
6" (152 mm) spout reach.
•
Coordinates with Composed faucets, accessories, and
showering components to complete your bathroom.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For single-hole installation.
•
Pre-attached flexible supply lines simplify installation.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Composed
®
Single-handle Bathroom Sink Faucet
K-73050-7
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
OBC
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Matte BlackBL
Vibrant TitaniumTT
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-18-2020 18:58 - US/CA/MX
Ø 1-1/4"
(32 mm)
22-7/16"
(570 mm)
2-13/16"
(71 mm)
2-15/16"
(75 mm)
Ø 2"
(51 mm)
6" (152 mm)
4-3/4"
(121 mm)
4"
(102 mm)
Supply Hoses with
3/8" Compression Fittings
4"
(102 mm)
2-5/8"
(67 mm)
Ø 2-1/4"
(57 mm)
1-1/4" OD
Pop-Up Drain
1-11/16"
(46 mm) Max
Composed
®
Single-handle Bathroom Sink Faucet
K-73050-7
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Cast brassValve body:
YesDrain with overflow:
YesDrain tailpiece
included:
Spout:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-18-2020 18:58 - US/CA/MX
5-15/16" (151 mm)Spout reach:
Notes
Install this product according to the installation
guide.
ADA, OBC compliant when installed to the
specific requirements of these regulations.
