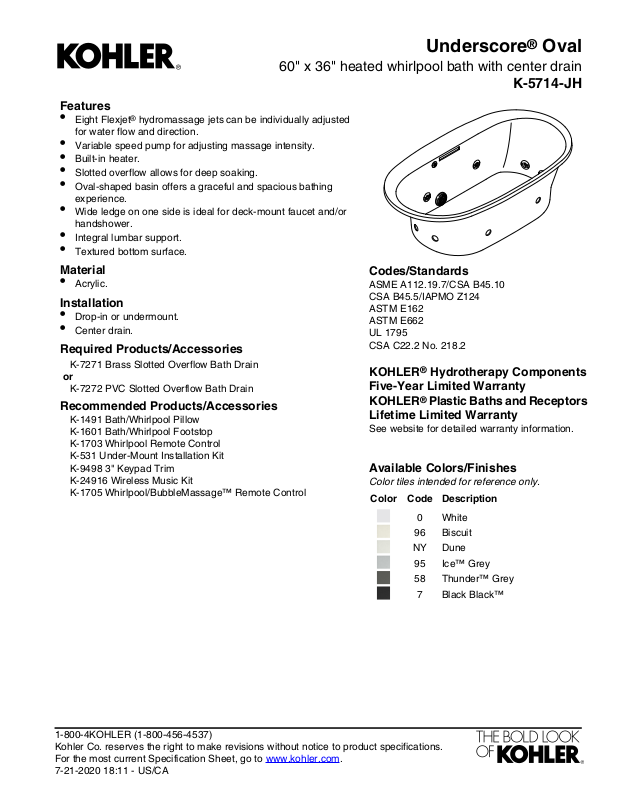

60" x 36" heated whirlpool bath with center drain
Features
•
Eight Flexjet® hydromassage jets can be individually adjusted
for water flow and direction.
•
Variable speed pump for adjusting massage intensity.
•
Built-in heater.
•
Slotted overflow allows for deep soaking.
•
Oval-shaped basin offers a graceful and spacious bathing
experience.
•
Wide ledge on one side is ideal for deck-mount faucet and/or
handshower.
•
Integral lumbar support.
•
Textured bottom surface.
Underscore® Oval
K-5714-JH
Material
•
Acrylic.
Installation
•
Drop-in or undermount.
•
Center drain.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-1703 Whirlpool Remote Control
K-531 Under-Mount Installation Kit
K-9498 3" Keypad Trim
K-24916 Wireless Music Kit
K-1705 Whirlpool/BubbleMassage™ Remote Control
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Ice™ Grey95
Thunder™ Grey58
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-21-2020 18:11 - US/CA

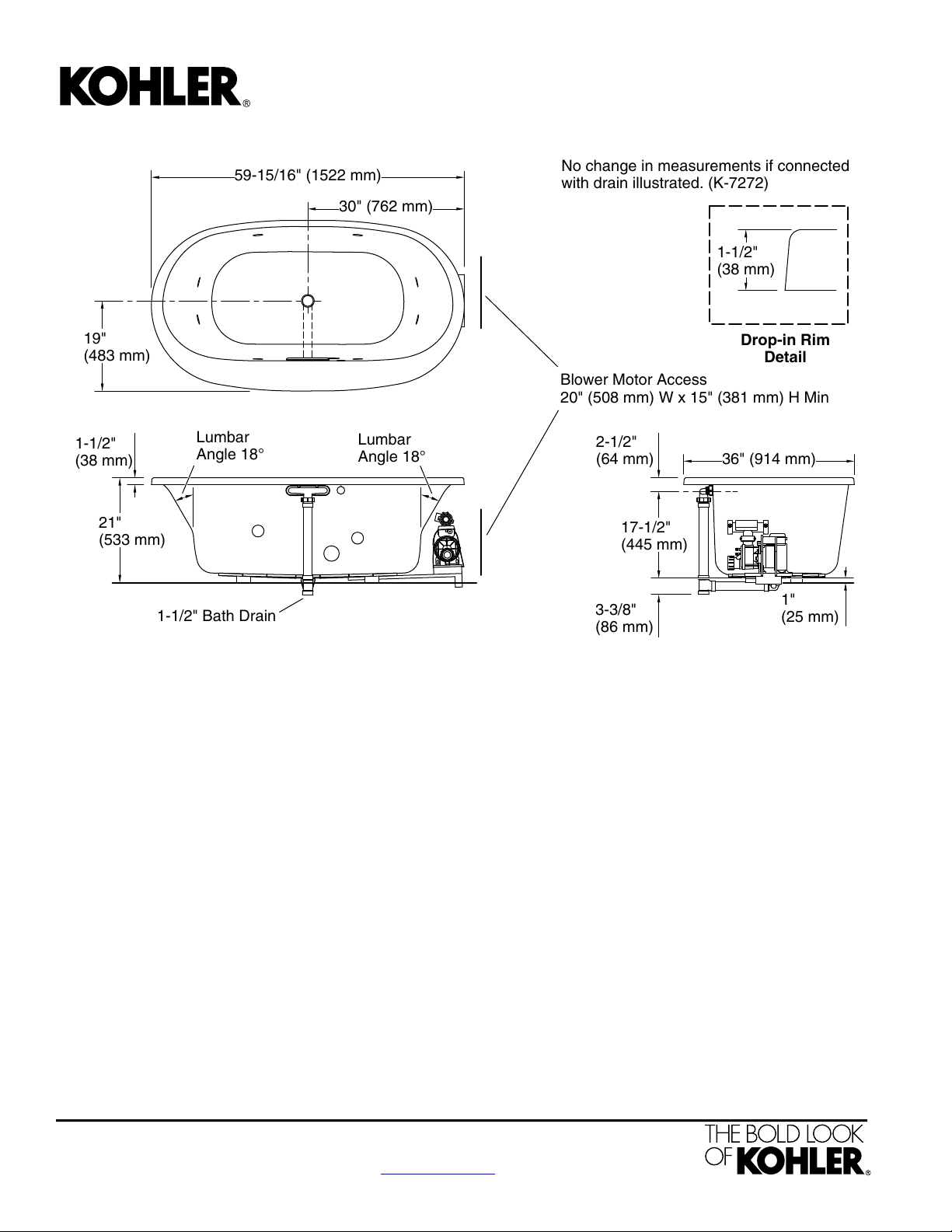

3-3/8"
(86 mm)
17-1/2"
(445 mm)
2-1/2"
(64 mm)
30" (762 mm)
59-15/16" (1522 mm)
Lumbar
Angle 18°
Lumbar
Angle 18°
1-1/2"
(38 mm)
No change in measurements if connected
with drain illustrated. (K-7272)
1-1/2" Bath Drain
19"
(483 mm)
1-1/2"
(38 mm)
36" (914 mm)
Blower Motor Access
20" (508 mm) W x 15" (381 mm) H Min
Drop-in Rim
Detail
1"
(25 mm)
21"
(533 mm)
Underscore® Oval
60" x 36" heated whirlpool bath with center drain
K-5714-JH
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 HzPump:
120 V, 15 A, 60 HzHeater:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Technical Information
All product dimensions are nominal.
Drop-in, UndermountInstallation:
CenterDrain location:
43-1/8" x 25-11/16" (1096 mm x 653 mm)Basin area, bottom:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-21-2020 18:11 - US/CA
55-3/16" x 28-5/16" (1402 mm x 719 mm)Basin area, top:
68 lbs (30.8 kg)Weight:
52.3 lbs/ft² (255.4 kg/m²)Minimum floor load:
16-5/16" (415 mm)Water depth:
72.03 gal (272.7 L)Water capacity:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
