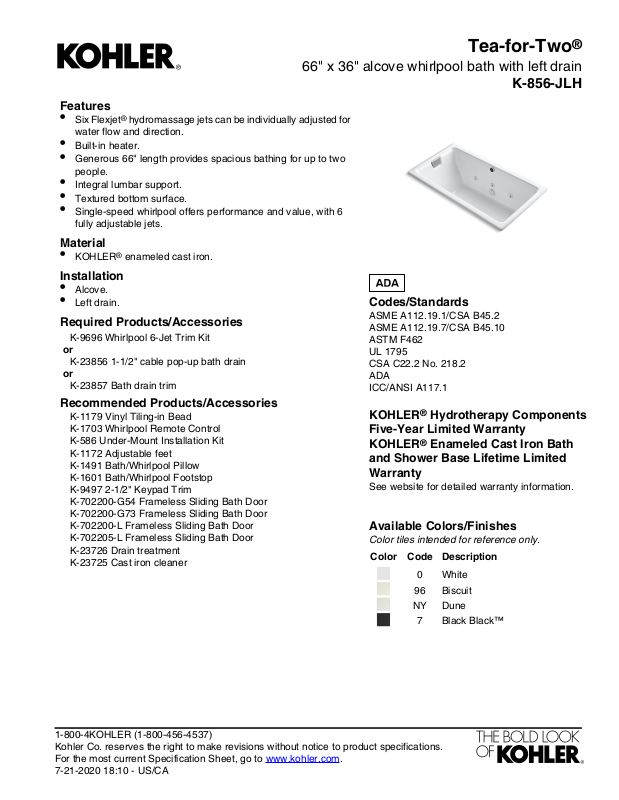

66" x 36" alcove whirlpool bath with left drain
Features
•
Six Flexjet® hydromassage jets can be individually adjusted for
water flow and direction.
•
Built-in heater.
•
Generous 66" length provides spacious bathing for up to two
people.
•
Integral lumbar support.
•
Textured bottom surface.
•
Single-speed whirlpool offers performance and value, with 6
fully adjustable jets.
Material
•
KOHLER® enameled cast iron.
Installation
•
Alcove.
•
Left drain.
Required Products/Accessories
K-9696 Whirlpool 6-Jet Trim Kit
or
K-23856 1-1/2" cable pop-up bath drain
or
K-23857 Bath drain trim
Recommended Products/Accessories
K-1179 Vinyl Tiling-in Bead
K-1703 Whirlpool Remote Control
K-586 Under-Mount Installation Kit
K-1172 Adjustable feet
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-9497 2-1/2" Keypad Trim
K-702200-G54 Frameless Sliding Bath Door
K-702200-G73 Frameless Sliding Bath Door
K-702200-L Frameless Sliding Bath Door
K-702205-L Frameless Sliding Bath Door
K-23726 Drain treatment
K-23725 Cast iron cleaner
Tea-for-Two
®
K-856-JLH
Codes/Standards
ASME A112.19.1/CSA B45.2
ASME A112.19.7/CSA B45.10
ASTM F462
UL 1795
CSA C22.2 No. 218.2
ADA
ICC/ANSI A117.1
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Enameled Cast Iron Bath
and Shower Base Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-21-2020 18:10 - US/CA
1-1/4"
(32 mm)
24-9/16"
(624 mm)
1-1/4"
(32 mm)
3/8"
(10 mm) R
Integral Flange Detail
Lumbar Angle 23°
Blower Motor Access
20" (508 mm) W x 15" (381 mm) H Min
1-1/2"
Bath Drain
No change in measurements if connected
with drain illustrated. (K-7169AF)
18"
(457 mm)
66" (1676 mm)
15-7/8"
(403 mm)
3"
(76 mm)
20-7/8"
(530 mm)
3-1/8"
(79 mm)
5/8"
(16 mm)
36" (914 mm)
Tea-for-Two
®
66" x 36" alcove whirlpool bath with left drain
K-856-JLH
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
Technical Information
All product dimensions are nominal.
Cutout:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-21-2020 18:10 - US/CA
120 V, 15 A, 60 HzPump:
120 V, 15 A, 60 HzHeater:
Three-wall alcoveInstallation:
LeftDrain location:
40-1/2" x 20" (1029 mm x 508 mm)Basin area, bottom:
52-3/4" x 24" (1340 mm x 610 mm)Basin area, top:
290 lbs (131.5 kg)Weight:
60 lbs/ft² (292.9 kg/m²)Minimum floor load:
13-5/8" (346 mm)Water depth:
60 gal (227.1 L)Water capacity:
Drop-in, 58-1/2" x 30-1/2" (1486 mm x
775 mm)
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
SinglePump speed:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
ADA compliant when installed to the specific
requirements of these regulations.
