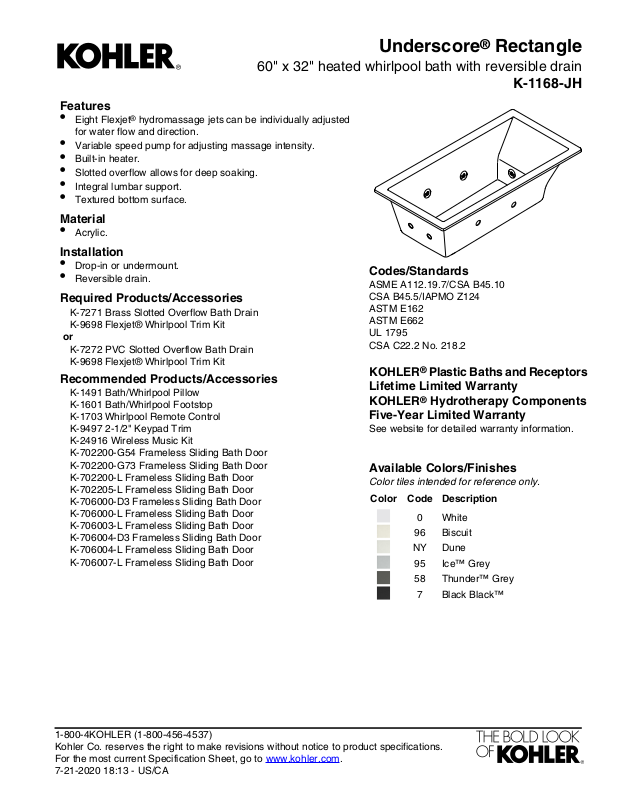

Page 1
60" x 32" heated whirlpool bath with reversible drain
Features
•
Eight Flexjet® hydromassage jets can be individually adjusted
for water flow and direction.
•
Variable speed pump for adjusting massage intensity.
•
Built-in heater.
•
Slotted overflow allows for deep soaking.
•
Integral lumbar support.
•
Textured bottom surface.
Material
•
Acrylic.
Installation
•
Drop-in or undermount.
•
Reversible drain.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-9698 Flexjet® Whirlpool Trim Kit
or
K-7272 PVC Slotted Overflow Bath Drain
K-9698 Flexjet® Whirlpool Trim Kit
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-1703 Whirlpool Remote Control
K-9497 2-1/2" Keypad Trim
K-24916 Wireless Music Kit
K-702200-G54 Frameless Sliding Bath Door
K-702200-G73 Frameless Sliding Bath Door
K-702200-L Frameless Sliding Bath Door
K-702205-L Frameless Sliding Bath Door
K-706000-D3 Frameless Sliding Bath Door
K-706000-L Frameless Sliding Bath Door
K-706003-L Frameless Sliding Bath Door
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-706007-L Frameless Sliding Bath Door
Underscore® Rectangle
K-1168-JH
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Ice™ Grey95
Thunder™ Grey58
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-21-2020 18:13 - US/CA
Page 2
32" (813 mm)
16"
(406 mm)
1"
(25 mm)
1"
(25 mm)
2-7/16"
(62 mm)
1/2"
(13 mm)
Blower Motor Access
20" (508 mm) W x 15" (381 mm) H Min
No change in measurements if connected
with drain illustrated. (K-7272)
Drop-in Rim
Detail
1-1/2" Bath Drain
60" (1524 mm)
Lumbar
Angle 34°
12-9/16"
(319 mm)
18-1/16"
(459 mm)
3-15/16"
(100 mm)
21"
(533 mm)
Underscore® Rectangle
60" x 32" heated whirlpool bath with reversible drain
K-1168-JH
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America,
this device may be known as a Residual Current Device (RCD).
Technical Information
All product dimensions are nominal.
Cutout:
Electrical component
rating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-21-2020 18:13 - US/CA
120 V, 15 A, 60 HzPump:
120 V, 15 A, 60 HzHeater:
Drop-in, UndermountInstallation:
EndDrain location:
42" x 23-1/2" (1066 mm x 597 mm)Basin area, bottom:
55-1/8" x 27-1/8" (1400 mm x 689 mm)Basin area, top:
120 lbs (54.4 kg)Weight:
62 lbs/ft² (302.7 kg/m²)Minimum floor load:
17-3/16" (436 mm)Water depth:
81 gal (306.6 L)Water capacity:
Drop-in, 64-1/2" x 30-1/2" (1638 mm x
775 mm)
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
