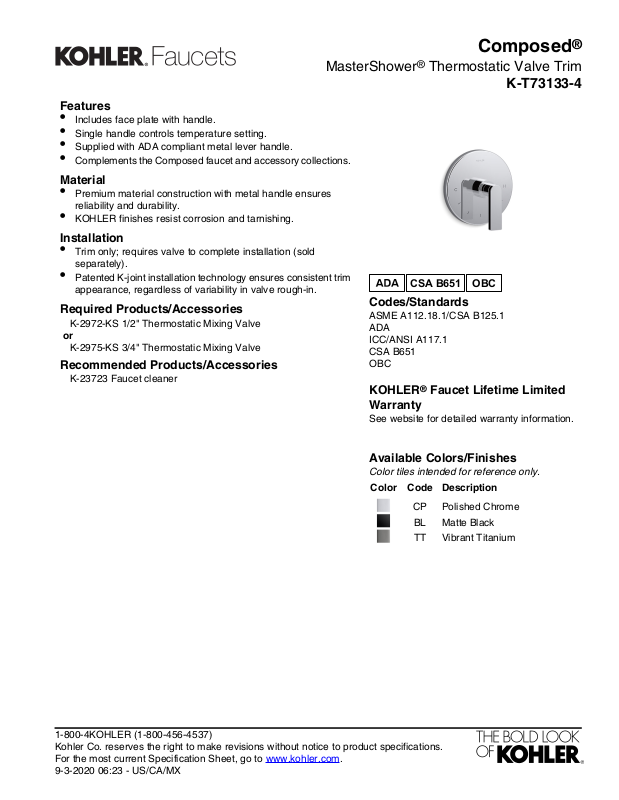

Page 1
Features
CSA B651
OBC
•
Includes face plate with handle.
•
Single handle controls temperature setting.
•
Supplied with ADA compliant metal lever handle.
•
Complements the Composed faucet and accessory collections.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
•
Patented K-joint installation technology ensures consistent trim
appearance, regardless of variability in valve rough-in.
Required Products/Accessories
K-2972-KS 1/2" Thermostatic Mixing Valve
or
K-2975-KS 3/4" Thermostatic Mixing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Composed
®
MasterShower® Thermostatic Valve Trim
K-T73133-4
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-3-2020 06:23 - US/CA/MX
DescriptionCodeColor
Polished ChromeCP
Matte BlackBL
Vibrant TitaniumTT
Page 2
3-5/16" (84 mm)
3-1/4"
(83 mm)
Ø 6-3/8" (162 mm)
Composed
®
MasterShower® Thermostatic Valve Trim
K-T73133-4
Technical Information
All product dimensions are nominal.
Cast brassValve body:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-3-2020 06:23 - US/CA/MX
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
