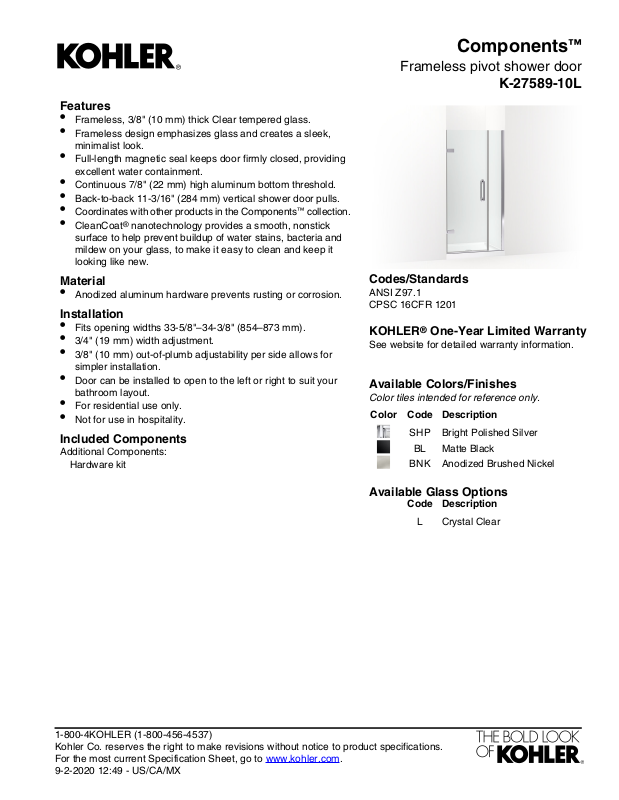

Page 1
Features
•
Frameless, 3/8" (10 mm) thick Clear tempered glass.
•
Frameless design emphasizes glass and creates a sleek,
minimalist look.
•
Full-length magnetic seal keeps door firmly closed, providing
excellent water containment.
•
Continuous 7/8" (22 mm) high aluminum bottom threshold.
•
Back-to-back 11-3/16" (284 mm) vertical shower door pulls.
•
Coordinates with other products in the Components™ collection.
•
CleanCoat® nanotechnology provides a smooth, nonstick
surface to help prevent buildup of water stains, bacteria and
mildew on your glass, to make it easy to clean and keep it
looking like new.
Components
™
Frameless pivot shower door
K-27589-10L
Material
•
Anodized aluminum hardware prevents rusting or corrosion.
Installation
•
Fits opening widths 33-5/8"–34-3/8" (854–873 mm).
•
3/4" (19 mm) width adjustment.
•
3/8" (10 mm) out-of-plumb adjustability per side allows for
simpler installation.
•
Door can be installed to open to the left or right to suit your
bathroom layout.
•
For residential use only.
•
Not for use in hospitality.
Included Components
Additional Components:
Hardware kit
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Matte BlackBL
Anodized Brushed NickelBNK
Available Glass Options
DescriptionCode
Crystal ClearL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 12:49 - US/CA/MX
Page 2
*Walk-through
71-9/16"
(1818 mm)
33-5/8" (854 mm) Min
34-3/8" (873 mm) Max
11/16"
(17 mm)
13/16"
(21 mm)
24-5/8"
(625 mm) Min
24-13/16"
(630 mm) Max
79"
(2007 mm) Min
79-5/16"
(2015 mm) Max
*24-7/16" (621 mm) Min
*24-5/8" (625 mm) Max
71-3/4"
(1822 mm)
Components
™
Frameless pivot shower door
K-27589-10L
Technical Information
All product dimensions are nominal.
For shower base installationInstallation type:
33-5/8" (854 mm)Opening Width - Min:
34-3/8" (873 mm)Opening Width - Max:
– Max:
Glass coating:
24-3/8" (619 mm)Walk-through - Min:
24-5/8" (625 mm)Walk-through - Max:
1/4" (6 mm)Base-To-Wall Radius
3/8" (10 mm)Glass thickness:
CleanCoat
®
Notes
Install this product according to the installation
instructions.
The vertical opening should be a minimum of
73-1/2" (1867 mm) to allow for installation
clearance.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 12:49 - US/CA/MX
