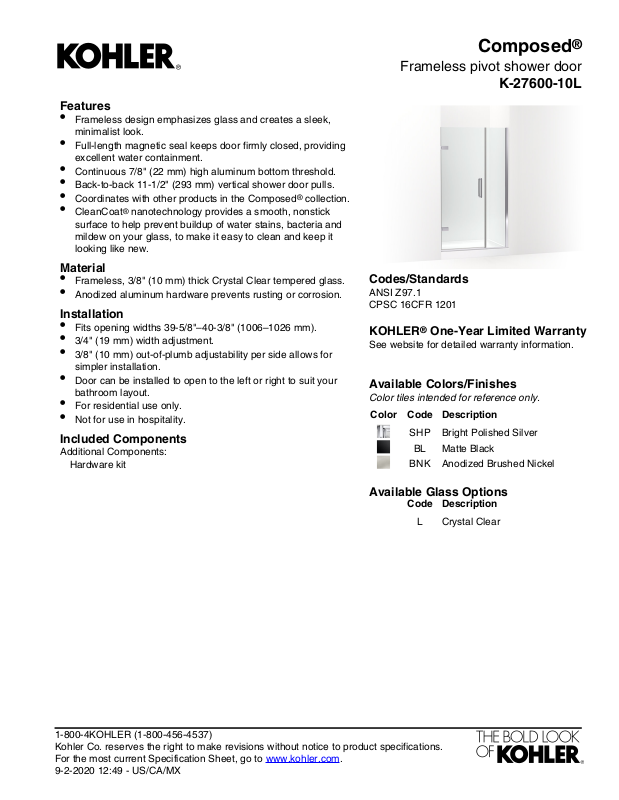

Page 1
Features
•
Frameless design emphasizes glass and creates a sleek,
minimalist look.
•
Full-length magnetic seal keeps door firmly closed, providing
excellent water containment.
•
Continuous 7/8" (22 mm) high aluminum bottom threshold.
•
Back-to-back 11-1/2" (293 mm) vertical shower door pulls.
•
Coordinates with other products in the Composed® collection.
•
CleanCoat® nanotechnology provides a smooth, nonstick
surface to help prevent buildup of water stains, bacteria and
mildew on your glass, to make it easy to clean and keep it
looking like new.
Material
•
Frameless, 3/8" (10 mm) thick Crystal Clear tempered glass.
•
Anodized aluminum hardware prevents rusting or corrosion.
Installation
•
Fits opening widths 39-5/8"–40-3/8" (1006–1026 mm).
•
3/4" (19 mm) width adjustment.
•
3/8" (10 mm) out-of-plumb adjustability per side allows for
simpler installation.
•
Door can be installed to open to the left or right to suit your
bathroom layout.
•
For residential use only.
•
Not for use in hospitality.
Included Components
Additional Components:
Hardware kit
Composed
®
Frameless pivot shower door
K-27600-10L
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Matte BlackBL
Anodized Brushed NickelBNK
Available Glass Options
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 12:49 - US/CA/MX
DescriptionCode
Crystal ClearL
Page 2
13/16"
(21 mm)
11/16"
(17 mm)
39-5/8" (1006 mm) Min
40-3/8" (1026 mm) Max
71-9/16"
(1818 mm)
*Walk-through
26-5/8"
(676 mm) Min
26-13/16"
(681 mm) Max
81-3/4"
(2076 mm) Min
82-1/8"
(2086 mm) Max
*26-7/16" (672 mm) Min
*26-5/8" (676 mm) Max
71-3/4"
(1822 mm)
Composed
®
Frameless pivot shower door
K-27600-10L
Technical Information
All product dimensions are nominal.
For shower base installationInstallation type:
39-5/8" (1006 mm)Opening Width - Min:
40-3/8" (1026 mm)Opening Width - Max:
– Max:
Glass coating:
26-3/8" (670 mm)Walk-through - Min:
26-5/8" (676 mm)Walk-through - Max:
1/4" (6 mm)Base-To-Wall Radius
3/8" (10 mm)Glass thickness:
CleanCoat
®
Notes
Install this product according to the installation
instructions.
The vertical opening should be a minimum of
73-1/2" (1867 mm) to allow for installation
clearance.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 12:49 - US/CA/MX
