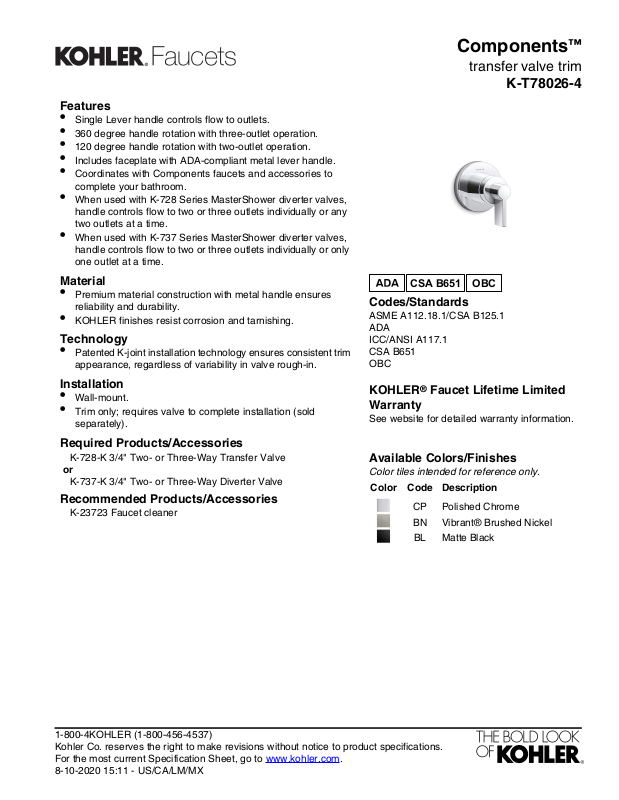

Page 1
Features
CSA B651
OBC
•
Single Lever handle controls flow to outlets.
•
360 degree handle rotation with three-outlet operation.
•
120 degree handle rotation with two-outlet operation.
•
Includes faceplate with ADA-compliant metal lever handle.
•
Coordinates with Components faucets and accessories to
complete your bathroom.
•
When used with K-728 Series MasterShower diverter valves,
handle controls flow to two or three outlets individually or any
two outlets at a time.
•
When used with K-737 Series MasterShower diverter valves,
handle controls flow to two or three outlets individually or only
one outlet at a time.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Technology
•
Patented K-joint installation technology ensures consistent trim
appearance, regardless of variability in valve rough-in.
Components
transfer valve trim
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
™
K-T78026-4
Installation
•
Wall-mount.
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-728-K 3/4" Two- or Three-Way Transfer Valve
or
K-737-K 3/4" Two- or Three-Way Diverter Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Matte BlackBL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-10-2020 15:11 - US/CA/LM/MX
Page 2
Ø 3-15/16" (100 mm)
4-7/16" (113 mm)
2-1/2"
(64 mm)
Components
transfer valve trim
K-T78026-4
™
Technical Information
All product dimensions are nominal.
NoDrain included:
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-10-2020 15:11 - US/CA/LM/MX
