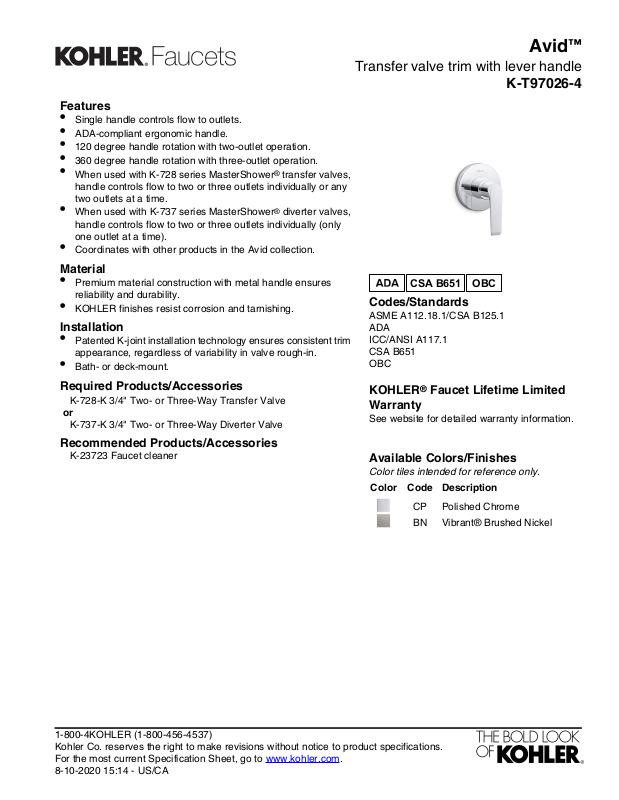

Features
CSA B651
OBC
•
Single handle controls flow to outlets.
•
ADA-compliant ergonomic handle.
•
120 degree handle rotation with two-outlet operation.
•
360 degree handle rotation with three-outlet operation.
•
When used with K-728 series MasterShower® transfer valves,
handle controls flow to two or three outlets individually or any
two outlets at a time.
•
When used with K-737 series MasterShower® diverter valves,
handle controls flow to two or three outlets individually (only
one outlet at a time).
•
Coordinates with other products in the Avid collection.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Patented K-joint installation technology ensures consistent trim
appearance, regardless of variability in valve rough-in.
•
Bath- or deck-mount.
Avid
™
Transfer valve trim with lever handle
K-T97026-4
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
Required Products/Accessories
K-728-K 3/4" Two- or Three-Way Transfer Valve
or
K-737-K 3/4" Two- or Three-Way Diverter Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-10-2020 15:14 - US/CA

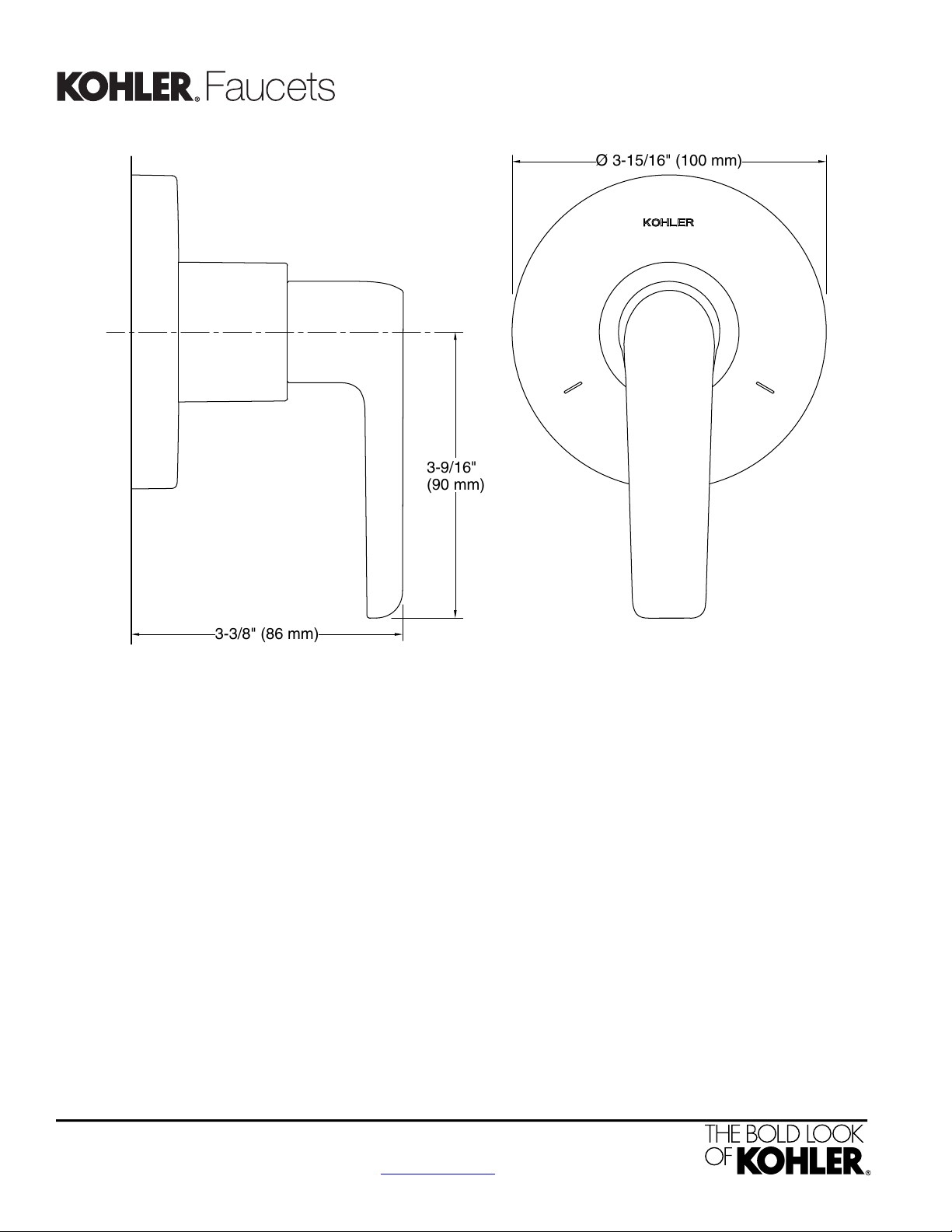

3-9/16"
(90 mm)
3-3/8" (86 mm)
Ø 3-15/16" (100 mm)
Avid
™
Transfer valve trim with lever handle
K-T97026-4
Technical Information
All product dimensions are nominal.
NoDrain included:
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
