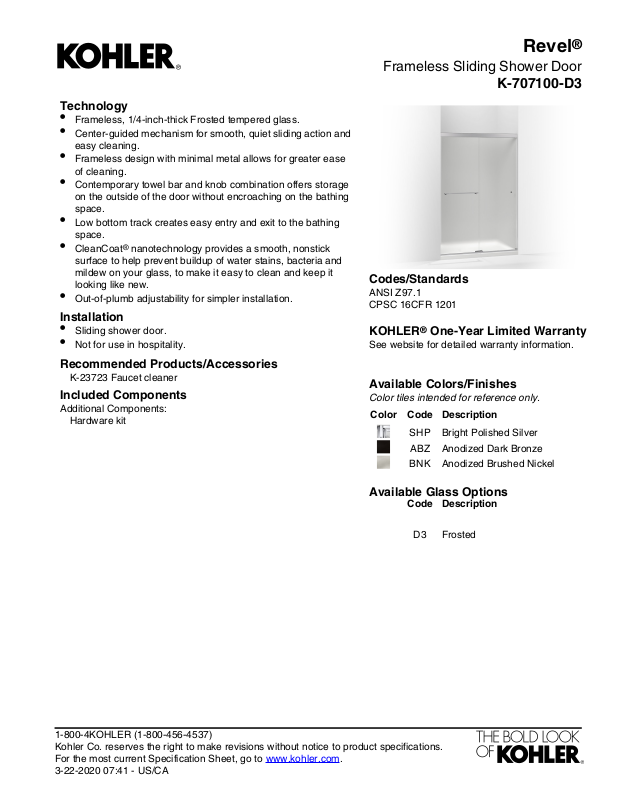

Page 1
Technology
•
Frameless, 1/4-inch-thick Frosted tempered glass.
•
Center-guided mechanism for smooth, quiet sliding action and
easy cleaning.
•
Frameless design with minimal metal allows for greater ease
of cleaning.
•
Contemporary towel bar and knob combination offers storage
on the outside of the door without encroaching on the bathing
space.
•
Low bottom track creates easy entry and exit to the bathing
space.
•
CleanCoat® nanotechnology provides a smooth, nonstick
surface to help prevent buildup of water stains, bacteria and
mildew on your glass, to make it easy to clean and keep it
looking like new.
•
Out-of-plumb adjustability for simpler installation.
Installation
•
Sliding shower door.
•
Not for use in hospitality.
Revel
®
Frameless Sliding Shower Door
K-707100-D3
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components:
Hardware kit
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Anodized Dark BronzeABZ
Anodized Brushed NickelBNK
Available Glass Options
DescriptionCode
FrostedD3
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 07:41 - US/CA
Page 2
* Walk-Through
4-3/4"
(121 mm)
2-1/2"
(64 mm)
* 67-1/16"
(1703 mm)
70"
(1778 mm)
* 22-3/4" (578 mm) Max
* 19-3/4" (502 mm) Min
47-5/8" (1210 mm) Max
44-5/8" (1133 mm) Min
5/8"
(16 mm)
2-1/4"
(57 mm)
2-1/2"
(64 mm)
2-1/2"
(64 mm)
Revel
®
Frameless Sliding Shower Door
K-707100-D3
Technical Information
All product dimensions are nominal.
For shower base installationInstallation type:
Sliding/BypassOpening style:
44-5/8" (1133 mm)Opening Width - Min:
– Max:
Glass coating:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 07:41 - US/CA
47-5/8" (1210 mm)Opening Width - Max:
19-3/4" (502 mm)Walk-through - Min:
22-3/4" (578 mm)Walk-through - Max:
3/8" (10 mm)Base-To-Wall Radius
1/4" (6 mm)Glass thickness:
CleanCoat
®
Notes
Install this product according to the installation
guide.
Wall jambs are made of clear plastic and may not
cover existing shower door holes.
NOTICE: The vertical opening should be a
minimum of 72-1/2" (1842 mm) to allow clearance
for installing the top track over the wall jambs.
