Page 1

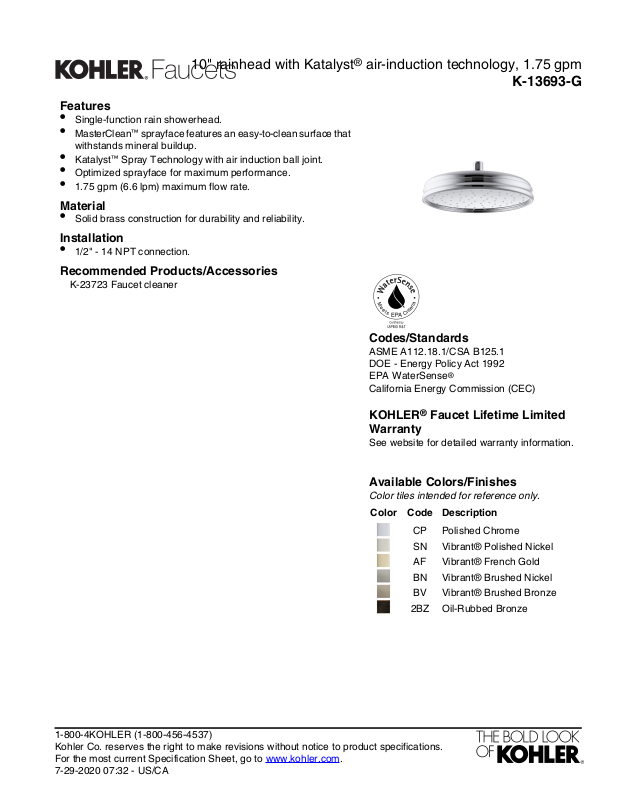

10" rainhead with Katalyst® air-induction technology, 1.75 gpm
Features
•
Single-function rain showerhead.
•
MasterClean™ sprayface features an easy-to-clean surface that
withstands mineral buildup.
•
Katalyst™ Spray Technology with air induction ball joint.
•
Optimized sprayface for maximum performance.
•
1.75 gpm (6.6 lpm) maximum flow rate.
Material
•
Solid brass construction for durability and reliability.
Installation
•
1/2" - 14 NPT connection.
Recommended Products/Accessories
K-23723 Faucet cleaner
K-13693-G
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® French GoldAF
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed Bronze2BZ
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:32 - US/CA
Page 2
Ø 10-7/16" (265 mm)
3-11/16"
(94 mm)
1/2"-14 NPT
10" rainhead with Katalyst® air-induction technology, 1.75 gpm
K-13693-G
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
1.75 gal/min (6.6 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:32 - US/CA
Notes
For use with automatic compensating valves rated
at 1.4 gal/min (5.3 l/min) or less.
Install this product according to the installation
instructions.
