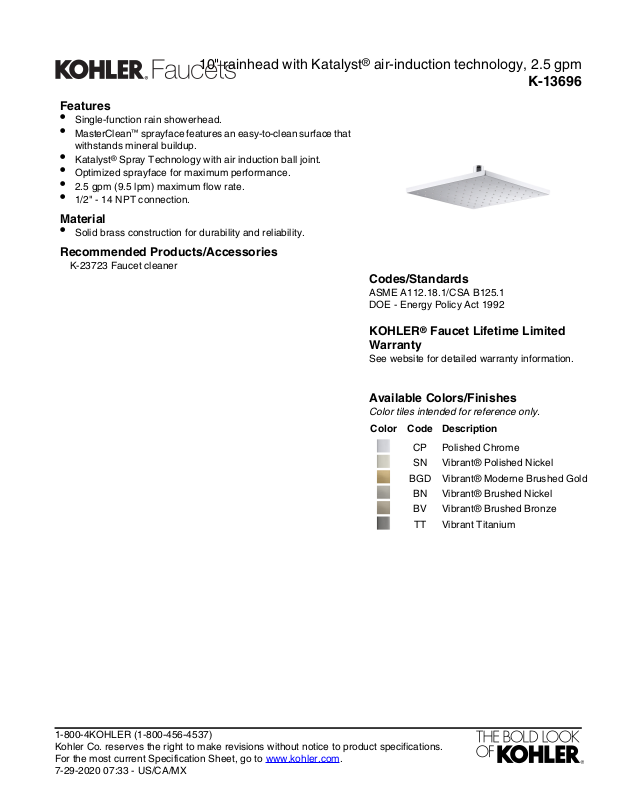

Page 1
10" rainhead with Katalyst® air-induction technology, 2.5 gpm
Features
•
Single-function rain showerhead.
•
MasterClean™ sprayface features an easy-to-clean surface that
withstands mineral buildup.
•
Katalyst® Spray Technology with air induction ball joint.
•
Optimized sprayface for maximum performance.
•
2.5 gpm (9.5 lpm) maximum flow rate.
•
1/2" - 14 NPT connection.
Material
•
Solid brass construction for durability and reliability.
Recommended Products/Accessories
K-23723 Faucet cleaner
K-13696
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Moderne Brushed GoldBGD
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Vibrant TitaniumTT
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:33 - US/CA/MX
Page 2
2-3/4"
(70 mm)
1/2"-14 NPT
10" (254 mm)
10" rainhead with Katalyst® air-induction technology, 2.5 gpm
K-13696
Technical Information
All product dimensions are nominal.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:33 - US/CA/MX
Notes
Install this product in accordance with the
installation instructions.
