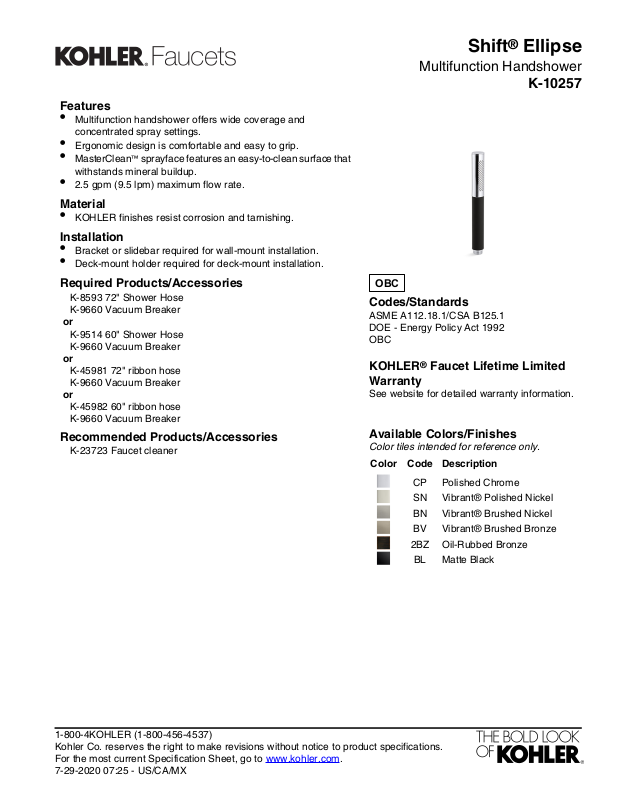

Features
OBC
•
Multifunction handshower offers wide coverage and
concentrated spray settings.
•
Ergonomic design is comfortable and easy to grip.
•
MasterClean™ sprayface features an easy-to-clean surface that
withstands mineral buildup.
•
2.5 gpm (9.5 lpm) maximum flow rate.
Material
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Bracket or slidebar required for wall-mount installation.
•
Deck-mount holder required for deck-mount installation.
Required Products/Accessories
K-8593 72" Shower Hose
K-9660 Vacuum Breaker
or
K-9514 60" Shower Hose
K-9660 Vacuum Breaker
or
K-45981 72" ribbon hose
K-9660 Vacuum Breaker
or
K-45982 60" ribbon hose
K-9660 Vacuum Breaker
Recommended Products/Accessories
K-23723 Faucet cleaner
Shift® Ellipse
Multifunction Handshower
K-10257
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:25 - US/CA/MX
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed Bronze2BZ
Matte BlackBL

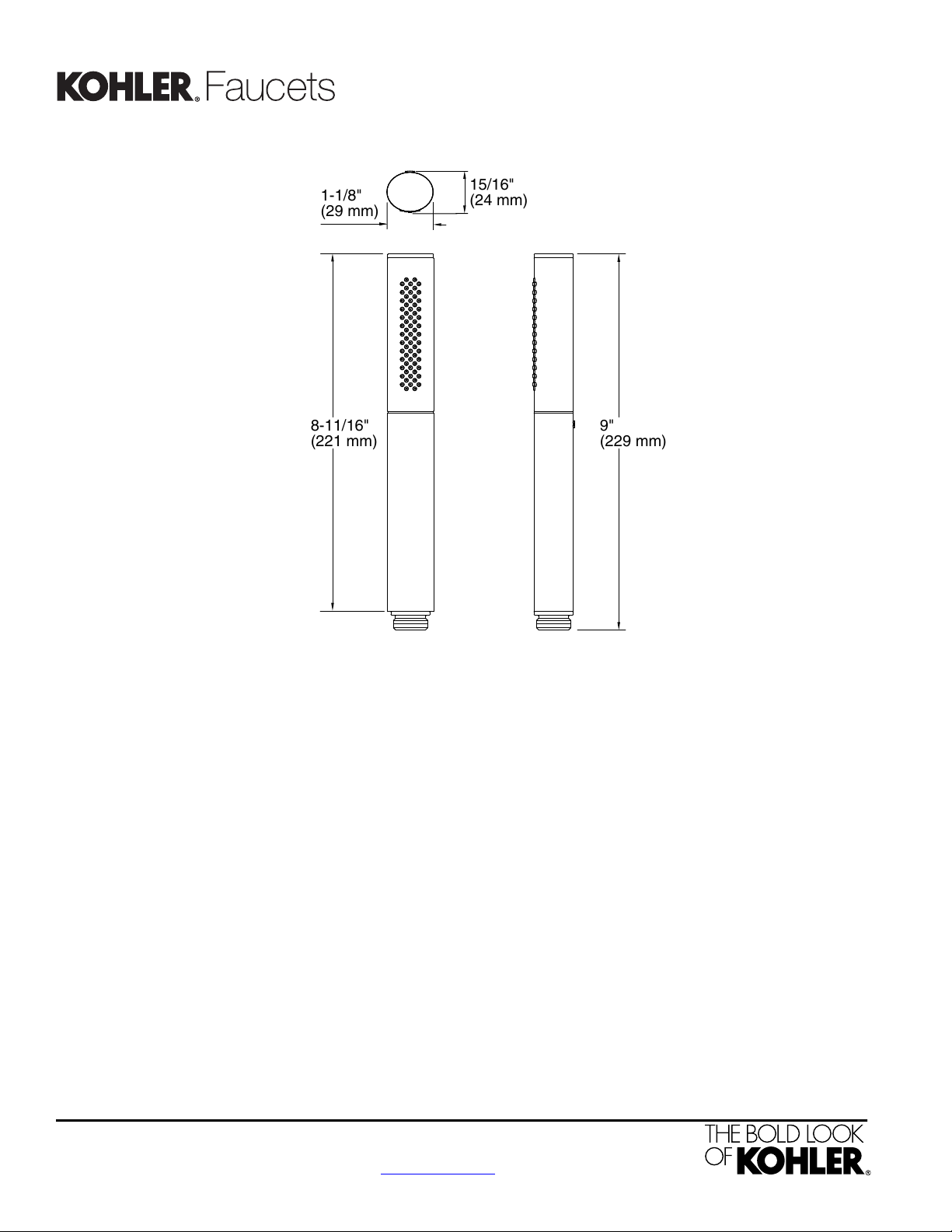

8-11/16"
(221 mm)
9"
(229 mm)
15/16"
(24 mm)
1-1/8"
(29 mm)
Shift® Ellipse
Multifunction Handshower
K-10257
Technical Information
All product dimensions are nominal.
Handshower:
2.5 gal/min (9.5 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
Notes
Install this product according to the installation
guide.
Plumbing codes require an atmospheric vacuum
breaker (such as Kohler Model K-9660) be
installed in-line with handshowers. Please consult
with local plumbing officials.
NOTE: Handshower contains flow regulating
check valve for backflow prevention.
OBC compliant when installed to the specific
requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:25 - US/CA/MX
