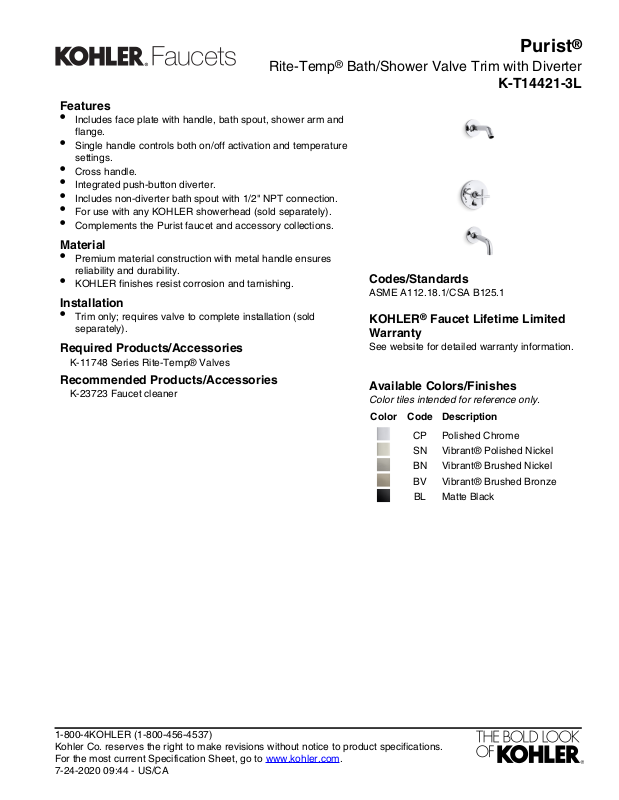

Page 1
Rite-Temp® Bath/Shower Valve Trim with Diverter
Features
•
Includes face plate with handle, bath spout, shower arm and
flange.
•
Single handle controls both on/off activation and temperature
settings.
•
Cross handle.
•
Integrated push-button diverter.
•
Includes non-diverter bath spout with 1/2" NPT connection.
•
For use with any KOHLER showerhead (sold separately).
•
Complements the Purist faucet and accessory collections.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Purist
K-T14421-3L
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Recommended Products/Accessories
K-23723 Faucet cleaner
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Matte BlackBL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-24-2020 09:44 - US/CA
Page 2
1/2" NPT pipe nipple must
extend 1-1/8" (29 mm)
beyond finished wall.
5-1/8" (130 mm)
3-1/2"
(89 mm)
Ø 6-1/2"
(165 mm)
7-3/4" (197 mm)
8-7/16" (214 mm)
2-1/8"
(54 mm)
Ø 4"
(102 mm)
Threaded Spout:
Extend 1/2"-14 NPT pipe 1-1/8"
(29 mm) from finished wall.
Ø 4"
(102 mm)
Purist
®
Rite-Temp® Bath/Shower Valve Trim with Diverter
K-T14421-3L
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
Avoid cross-flow conditions. Do not install shut-off
device on either valve outlet.
Cap the shower outlet if deck-mount spout,
diverter, or handshower is connected to the spout
outlet.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-24-2020 09:44 - US/CA
