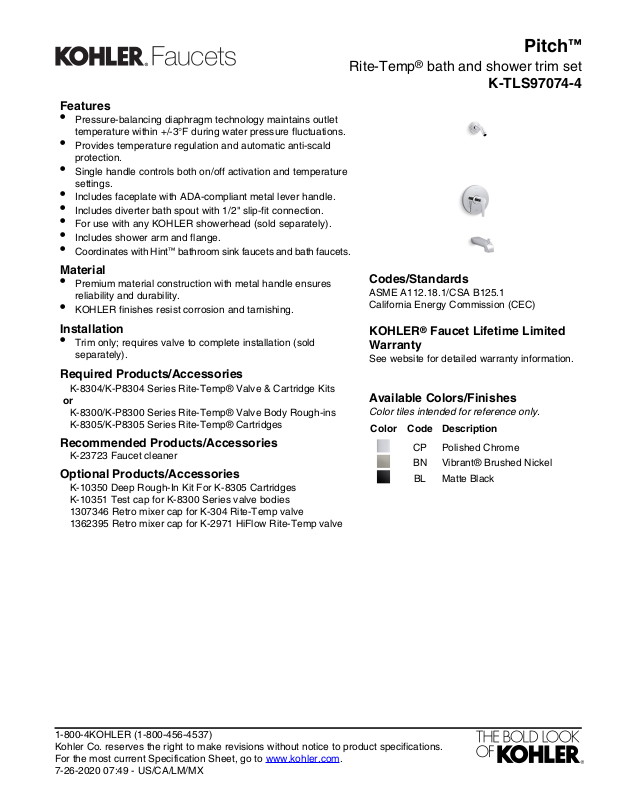

Page 1
Features
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
Provides temperature regulation and automatic anti-scald
protection.
•
Single handle controls both on/off activation and temperature
settings.
•
Includes faceplate with ADA-compliant metal lever handle.
•
Includes diverter bath spout with 1/2" slip-fit connection.
•
For use with any KOHLER showerhead (sold separately).
•
Includes shower arm and flange.
•
Coordinates with Hint™ bathroom sink faucets and bath faucets.
Pitch
™
Rite-Temp® bath and shower trim set
K-TLS97074-4
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-8304/K-P8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300/K-P8300 Series Rite-Temp® Valve Body Rough-ins
K-8305/K-P8305 Series Rite-Temp® Cartridges
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep Rough-In Kit For K-8305 Cartridges
K-10351 Test cap for K-8300 Series valve bodies
1307346 Retro mixer cap for K-304 Rite-Temp valve
1362395 Retro mixer cap for K-2971 HiFlow Rite-Temp valve
Codes/Standards
ASME A112.18.1/CSA B125.1
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Matte BlackBL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-26-2020 07:49 - US/CA/LM/MX
Page 2
1-11/16"
(43 mm)
1/2" NPT
Ø 2-1/2"
(64 mm)
Slip-fit:
Extend 5/8" OD tube 5"
(127 mm) from finished wall.
3-11/16"
(94 mm)
3-3/8"
(86 mm)
Ø 6-3/8"
(162 mm)
1-9/16"
(40 mm)
6" (152 mm)
Finished Wall
K-8300 Valve
Series
Ø 1-1/4"
(32 mm) Max
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
4-3/8"
(111 mm)
Typical
Pitch
™
Rite-Temp® bath and shower trim set
K-TLS97074-4
Technical Information
All product dimensions are nominal.
NoDrain included:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-26-2020 07:49 - US/CA/LM/MX
Notes
Install this product according to the installation
instructions.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and the wall-mount spout.
