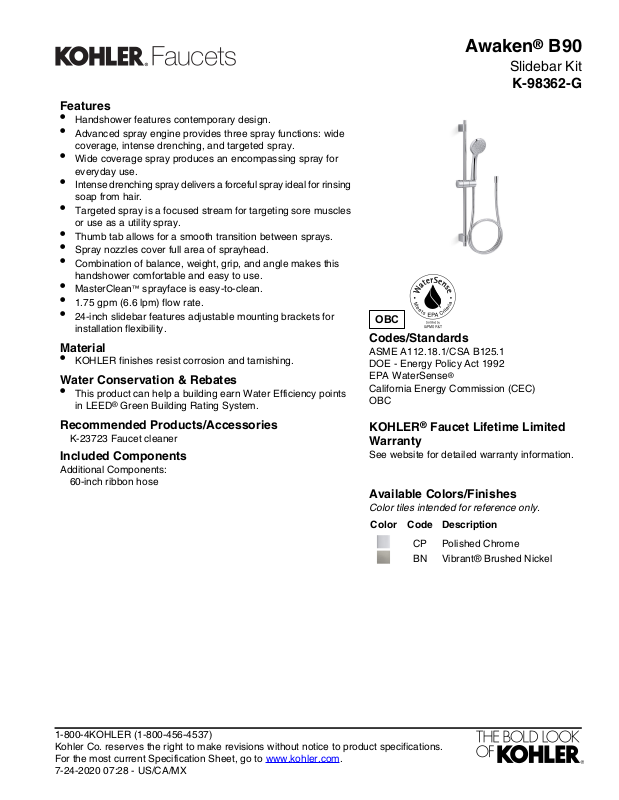

Features
OBC
•
Handshower features contemporary design.
•
Advanced spray engine provides three spray functions: wide
coverage, intense drenching, and targeted spray.
•
Wide coverage spray produces an encompassing spray for
everyday use.
•
Intense drenching spray delivers a forceful spray ideal for rinsing
soap from hair.
•
Targeted spray is a focused stream for targeting sore muscles
or use as a utility spray.
•
Thumb tab allows for a smooth transition between sprays.
•
Spray nozzles cover full area of sprayhead.
•
Combination of balance, weight, grip, and angle makes this
handshower comfortable and easy to use.
•
MasterClean™ sprayface is easy-to-clean.
•
1.75 gpm (6.6 lpm) flow rate.
•
24-inch slidebar features adjustable mounting brackets for
installation flexibility.
Material
•
KOHLER finishes resist corrosion and tarnishing.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Awaken® B90
Slidebar Kit
K-98362-G
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
OBC
®
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components:
60-inch ribbon hose
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-24-2020 07:28 - US/CA/MX
2-1/2"
(64 mm)
60" (1524 mm)
Overall Length
12" (305 mm) Max
27-1/2"
(699 mm)
24"
(610 mm)
Ø 3-3/4"
(95 mm)
2-15/16"
(75 mm)
9-11/16"
(246 mm)
Awaken® B90
Slidebar Kit
K-98362-G
Technical Information
All product dimensions are nominal.
Handshower:
1.75 gal/min (6.6 l/min)Rated maximum flow:
Notes
Install this product according to the installation
instructions.
Plumbing codes require approved backflow
prevention devices to be installed in-line to
handshowers. Please consult with local plumbing
officials.
Mount the slidebar to stud framing or install
backing support. For tile or other solid finish
surfaces: Predrill mounting holes through surface
material only; do not drill into the stud. For drywall
surface: No predrill is required.
NOTE: The mounting brackets can be adjusted
to align with existing holes for retrofit installations.
OBC compliant when installed to the specific
requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-24-2020 07:28 - US/CA/MX
