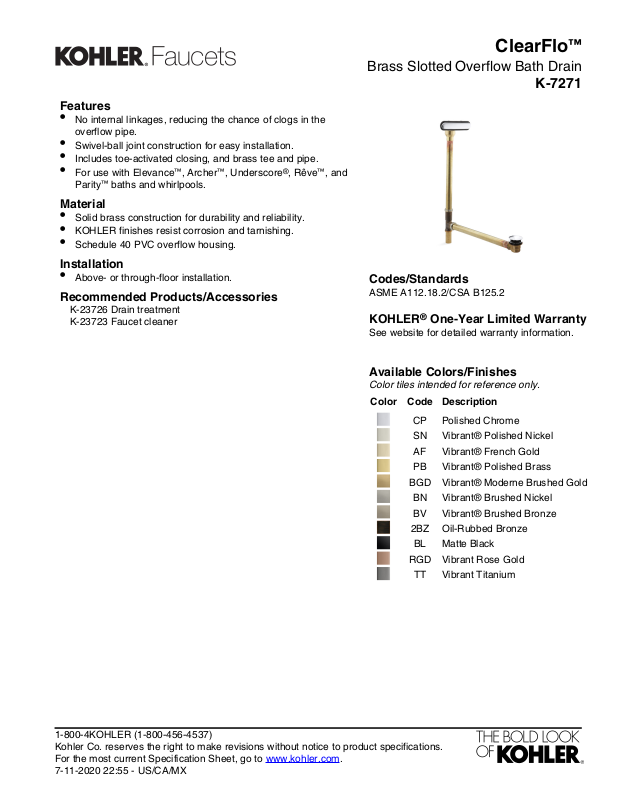

Page 1
Features
•
No internal linkages, reducing the chance of clogs in the
overflow pipe.
•
Swivel-ball joint construction for easy installation.
•
Includes toe-activated closing, and brass tee and pipe.
•
For use with Elevance™, Archer™, Underscore®, Rêve™, and
Parity™ baths and whirlpools.
Material
•
Solid brass construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
•
Schedule 40 PVC overflow housing.
Installation
•
Above- or through-floor installation.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
ClearFlo
™
Brass Slotted Overflow Bath Drain
K-7271
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® French GoldAF
Vibrant® Polished BrassPB
Vibrant® Moderne Brushed GoldBGD
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed Bronze2BZ
Matte BlackBL
Vibrant Rose GoldRGD
Vibrant TitaniumTT
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-11-2020 22:55 - US/CA/MX
Page 2
1-1/2" OD
L-1
18" (457 mm)
pipe supplied
NOTE: For L-1 and L-2,
cut supplied pipes to fit.
L-2
18" (457 mm)
pipe supplied
1-3/8"
(35 mm)
2-1/4"
(57 mm)
2-5/8"
(67 mm)
ClearFlo
™
Brass Slotted Overflow Bath Drain
K-7271
Technical Information
All product dimensions are nominal.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-11-2020 22:55 - US/CA/MX
