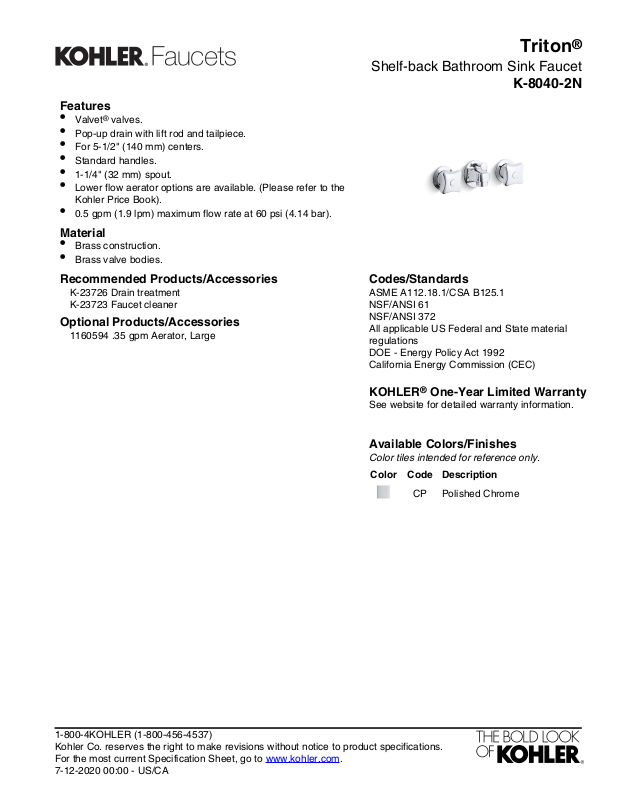

Page 1
Features
•
Valvet® valves.
•
Pop-up drain with lift rod and tailpiece.
•
For 5-1/2" (140 mm) centers.
•
Standard handles.
•
1-1/4" (32 mm) spout.
•
Lower flow aerator options are available. (Please refer to the
Kohler Price Book).
•
0.5 gpm (1.9 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
Brass construction.
•
Brass valve bodies.
Triton
®
Shelf-back Bathroom Sink Faucet
K-8040-2N
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Optional Products/Accessories
1160594 .35 gpm Aerator, Large
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-12-2020 00:00 - US/CA
Page 2
2-3/8"
(60 mm)
3-1/4"
(83 mm)
3/16"
(5 mm)
5-1/2" (140 mm)
1-13/16"
(46 mm)
2-1/4"
(57 mm)
1-5/8"
(41 mm)
1-1/4"
(32 mm)
1-3/8"
(35 mm)
1-1/4" OD
4" (102 mm)
2-5/8"
(67 mm)
Pop-up Drain
Ø 2-1/8"
(54 mm)
Triton
®
Shelf-back Bathroom Sink Faucet
K-8040-2N
Technical Information
All product dimensions are nominal.
Faucet:
included:
Spout:
0.5 gal/min (1.9 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
YesDrain included:
YesDrain tailpiece
1-1/4" (32 mm)Spout reach:
Notes
Install this product according to the installation
guide.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-12-2020 00:00 - US/CA
