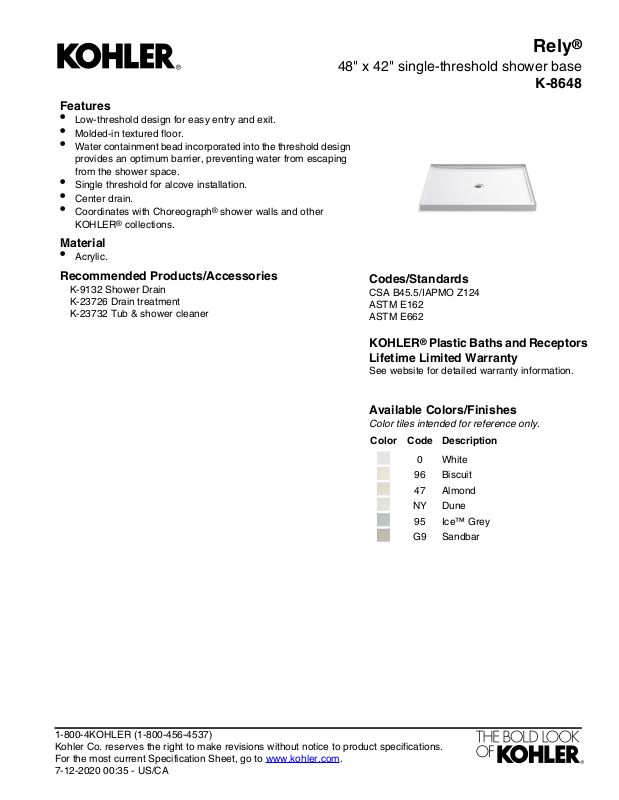

Page 1
Features
•
Low-threshold design for easy entry and exit.
•
Molded-in textured floor.
•
Water containment bead incorporated into the threshold design
provides an optimum barrier, preventing water from escaping
from the shower space.
•
Single threshold for alcove installation.
•
Center drain.
•
Coordinates with Choreograph® shower walls and other
KOHLER® collections.
Material
•
Acrylic.
Rely
®
48" x 42" single-threshold shower base
K-8648
Recommended Products/Accessories
K-9132 Shower Drain
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-12-2020 00:35 - US/CA
Page 2
4-3/16"
(106 mm)
42"
(1067 mm)
20-1/4"
(514 mm)
24" (610 mm)
48" (1219 mm)
Front Lip Detail
2-5/8"
(67 mm)
3/8" (10 mm)
3/8"
(10 mm)
Flange Detail
1-5/8"
(41 mm)
2-15/16"
(75 mm)
Rely
®
48" x 42" single-threshold shower base
K-8648
Technical Information
All product dimensions are nominal.
Three-wall alcoveInstallation:
CenterDrain location:
59 lbs (26.8 kg)Weight:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
Subfloor must be within 1/2" (13 mm) of level.
This receptor has a front lip. This should be taken
into account when installing a shower door.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-12-2020 00:35 - US/CA
