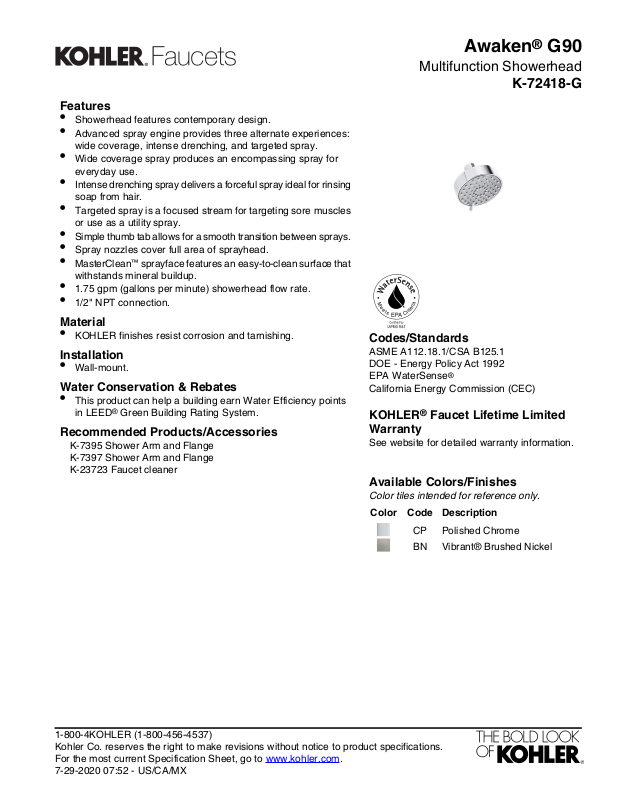

Page 1
Features
•
Showerhead features contemporary design.
•
Advanced spray engine provides three alternate experiences:
wide coverage, intense drenching, and targeted spray.
•
Wide coverage spray produces an encompassing spray for
everyday use.
•
Intense drenching spray delivers a forceful spray ideal for rinsing
soap from hair.
•
Targeted spray is a focused stream for targeting sore muscles
or use as a utility spray.
•
Simple thumb tab allows for a smooth transition between sprays.
•
Spray nozzles cover full area of sprayhead.
•
MasterClean™ sprayface features an easy-to-clean surface that
withstands mineral buildup.
•
1.75 gpm (gallons per minute) showerhead flow rate.
•
1/2" NPT connection.
Material
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Recommended Products/Accessories
K-7395 Shower Arm and Flange
K-7397 Shower Arm and Flange
K-23723 Faucet cleaner
Awaken® G90
Multifunction Showerhead
K-72418-G
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:52 - US/CA/MX
Polished ChromeCP
Vibrant® Brushed NickelBN
Page 2
Ø 3-9/16" (90 mm)
2-13/16" (71 mm)
1/2"-14 NPT
Awaken® G90
Multifunction Showerhead
K-72418-G
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
1.75 gal/min (6.6 l/min)Rated maximum flow:
45 psi (3.1 bar)Pressure:
Notes
Install this product according to the installation
instructions.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-29-2020 07:52 - US/CA/MX
