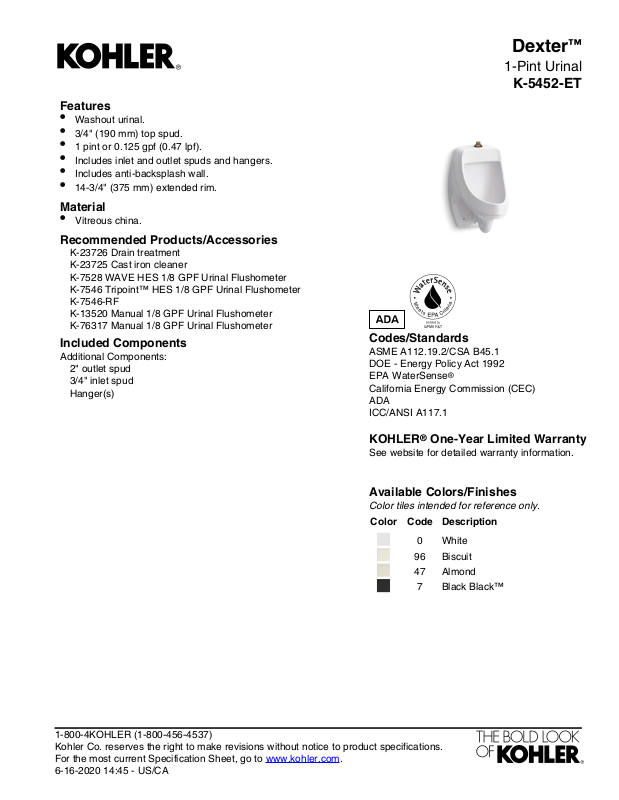

Page 1
Features
•
Washout urinal.
•
3/4" (190 mm) top spud.
•
1 pint or 0.125 gpf (0.47 lpf).
•
Includes inlet and outlet spuds and hangers.
•
Includes anti-backsplash wall.
•
14-3/4" (375 mm) extended rim.
Material
•
Vitreous china.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
K-7528 WAVE HES 1/8 GPF Urinal Flushometer
K-7546 Tripoint™ HES 1/8 GPF Urinal Flushometer
K-7546-RF
K-13520 Manual 1/8 GPF Urinal Flushometer
K-76317 Manual 1/8 GPF Urinal Flushometer
Included Components
Additional Components:
2" outlet spud
3/4" inlet spud
Hanger(s)
Dexter
1-Pint Urinal
K-5452-ET
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
®
™
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 14:45 - US/CA
Page 2
2-3/8"
(60 mm)
Outlet Detail
6" (152 mm)
2" NPT
Tap
1/4"
(6 mm)
13-3/4" (349 mm)
30"
(762 mm)
To Floor
for Regular
Installation
For Retrofit
Installation
3/4" Spud
2" NPT
Tap
6-1/2"
(165 mm)
32-1/2"
(832 mm)
To Floor for
Retrofit
Installation
11-3/4"
(298 mm)
14-3/4" (375 mm)
20-3/4"
(527 mm)
Floor
24" (610 mm)
Standard
Installation
17" (432 mm) Max
ADA Installation
17-1/2" (445 mm)
Standard
Installation
9-1/2"
(241 mm) Max
ADA Installation
Dexter
™
1-Pint Urinal
K-5452-ET
Technical Information
All product dimensions are nominal.
WashoutFlush outlet
technology:
3/4", Inlet, TopSpud size:
0.125 gal (0.5 L)Min. Water per Flush:
0.125 gal (0.5 L)Max. Water per Flush:
Designed for the above water use when installed with a
water-saving flushometer.
Pressure and Supply Requirements
25 psi (172.4 kPa)Fixture pressure min
(static):
80 psi (551.6 kPa)Fixture pressure max
(static):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 14:45 - US/CA
Notes
Designed only for use with a 0.125 gpf (0.5 lpf)
flushometer.
Install this product according to the installation
instructions.
Recommended ADA outlet spud height will
account for normal product variation.
For ADA compliance, measurement must be 17"
(432 mm) or less from the floor to the top of the
lip.
ADA compliant when installed to the specific
requirements of these regulations.
