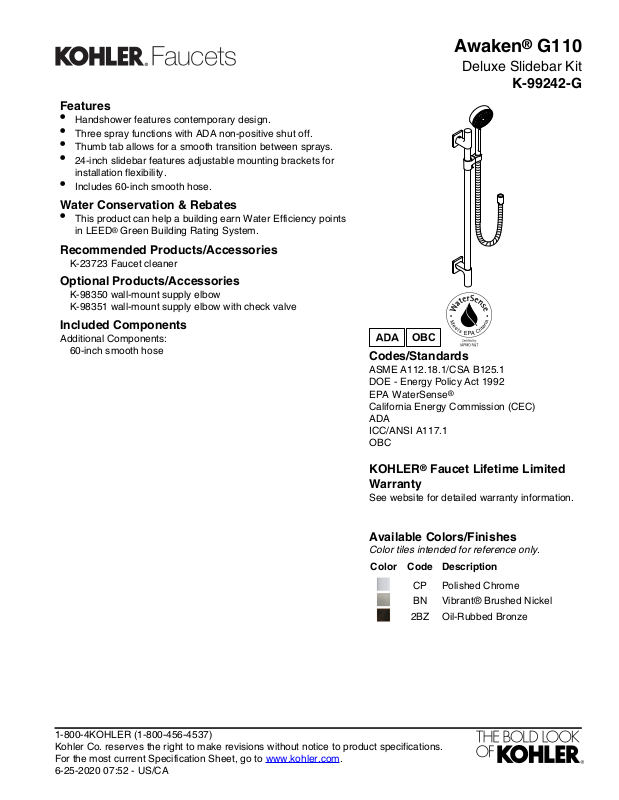

Features
OBC
•
Handshower features contemporary design.
•
Three spray functions with ADA non-positive shut off.
•
Thumb tab allows for a smooth transition between sprays.
•
24-inch slidebar features adjustable mounting brackets for
installation flexibility.
•
Includes 60-inch smooth hose.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-98350 wall-mount supply elbow
K-98351 wall-mount supply elbow with check valve
Included Components
Additional Components:
60-inch smooth hose
Awaken® G110
Deluxe Slidebar Kit
K-99242-G
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
OBC
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-25-2020 07:52 - US/CA
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Oil-Rubbed Bronze2BZ
60" (1524 mm)
Overall Length
29-5/8"
(752 mm)
24"
(610 mm)
2-15/16"
(75 mm)
9-5/8"
(244 mm)
3-5/8"
(92 mm)
Ø 4-5/16"
(110 mm)
Awaken® G110
Deluxe Slidebar Kit
K-99242-G
Technical Information
All product dimensions are nominal.
Handshower:
1.75 gal/min (6.6 l/min)Rated maximum flow:
Notes
Install this product according to the installation
instructions.
Plumbing codes require approved backflow
prevention devices to be installed in-line to
handshowers. Please consult with local plumbing
officials.
Mount the slidebar to stud framing or install
backing support. For tile or other solid finish
surfaces: Predrill mounting holes through surface
material only; do not drill into the stud. For drywall
surface: No predrill is required.
ADA, OBC compliant when installed to the
specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-25-2020 07:52 - US/CA
