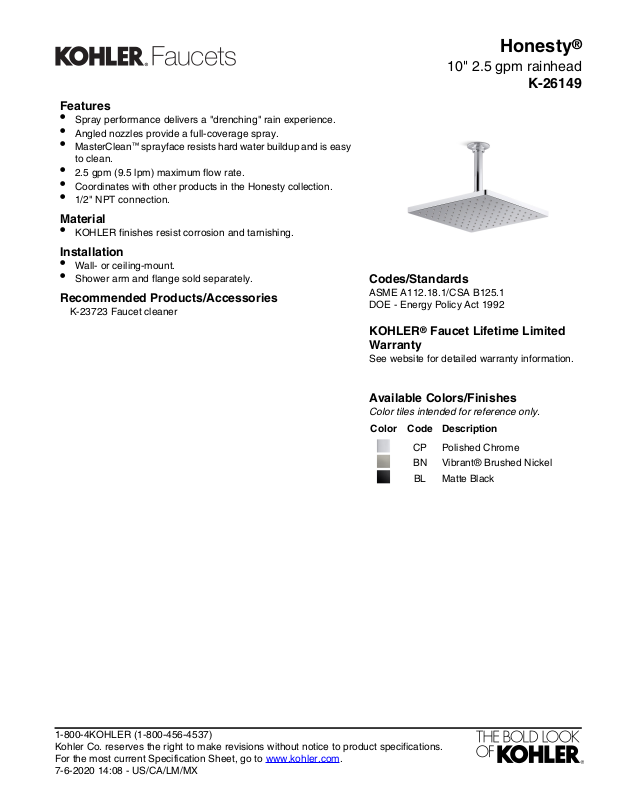

Page 1
Features
•
Spray performance delivers a "drenching" rain experience.
•
Angled nozzles provide a full-coverage spray.
•
MasterClean™ sprayface resists hard water buildup and is easy
to clean.
•
2.5 gpm (9.5 lpm) maximum flow rate.
•
Coordinates with other products in the Honesty collection.
•
1/2" NPT connection.
Material
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall- or ceiling-mount.
•
Shower arm and flange sold separately.
Recommended Products/Accessories
K-23723 Faucet cleaner
Honesty
10" 2.5 gpm rainhead
K-26149
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Matte BlackBL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-6-2020 14:08 - US/CA/LM/MX
Page 2
10" (254 mm)
2-7/16"
(62 mm)
1/2"-14 NPT
Honesty
®
10" 2.5 gpm rainhead
K-26149
Technical Information
All product dimensions are nominal.
NoDrain included:
Showerhead/Body Spray:
2.5 gal/min (9.5 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
Notes
For use with automatic compensating valves rated
at 2.10 gal/min (7.9 l/min) or less.
Install this product according to the installation
instructions.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-6-2020 14:08 - US/CA/LM/MX
